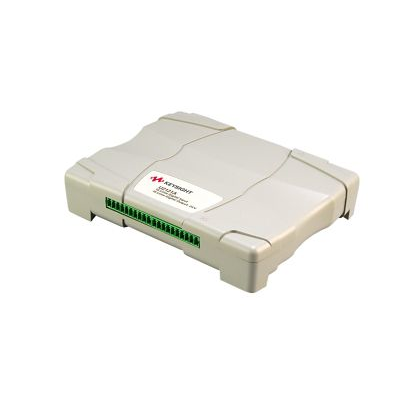

The Keysight U2121A USB digital I/O module is a small and cost-effective device that provides 32 opto-isolated digital lines. The U2121A enables quick and easy setup with full-speed USB 2.0 – so you can just plug the module in without the hassle of opening up your computer chassis. With high-voltage protection, watchdog timer, programmable power-up states, edge detection and digital filtering, the U2121A is well-suited to industrial automation and control. Giving users more choices, the U2121A is compatible with a wide range of application development environments such as Keysight VEE, NI LabVIEW and Microsoft Visual Studio. The Keysight U2121A-based RF switch solution is a cost-effective, easy-to-use, and convenient way to implement RF switching in small test systems for a variety of applications. The simplified installation, operation of the digital I/O card, and the breakout module allows straightforward control of small RF switching systems. This helps you to quickly create simple yet cost-effective RF switch systems.Supported SwitchesKeysight 8762/63/64Coaxial SwitchesKeysight Microwave SPDT SwitchesKeysight N1810/11/12Coaxial SwitchesModelModelModel8762A/B/C8763A/B/C8764A/B/C8765A, 8765B, 8765C, 8765DN1810UL, N1810TL, N1811TL,N1812ULOptionOptionOption024024 or 324(002, 004, 020 or 026) and 124 and (201 or 202) and(301, 302 or UK6)Compare Keysight USB Digital I/O in a side-by-side comparison.Visual Studio and Microsoft are registered trademarks of Microsoft Corporation in the United States and/or other countries.

Plug-and-play installation and configuration with full-speed USB 2.0 (12Mb/s) USBTMC USB 488 complianceHigh performance- 16 input lines and 16 output lines, all opto-isolated- Input voltage: 0 to 24V- Output load voltage: 24V max.Programmable power-up statesWatchdog timerEdge detectionDigital filterOptional RF switch driver module to control and monitor up to 5 RF switchesCompatibility with Keysight VEE, LabVIEW, Microsoft Visual Studio, and other development environments
