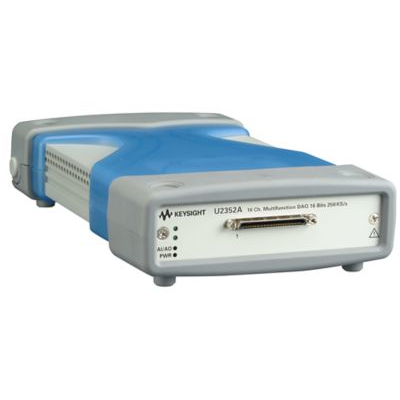

The U2352A offers multifunction capabilities in a module. It can be used like a digital multimeter in polling mode. It can be transformed to be a simple scope using the continuous mode with simple triggering capabilities. No matter if it is used as a standalone module or when plugged into a U2781A USB modular instrument chassis, the synchronization and triggering capabilities allow great flexibility in making the desired measurements. The digital IO channels allows for closed loop control through connections to switches, relays and solenoids. The burst mode enables the U2352A to simulate simultaneous analog input acquisition.

The U2352A works together with an optional U2901A or U2902A terminal block for easy connections.

It comes bundled with the Keysight Measurement Manager (AMM) software for quick set up and data logging. Simplifying this further is the command logger function offered in the Keysight Measurement Manager that allows capturing of configuration commands that can be easily converted to snippets of VEE code. Other supported languages are VB, C++, and C#.

Giving users more flexibility, the U2352A is compatible with a wide range of application development environments such as Keysight VEE, MATLAB R2007a, NI LabVIEW and Microsoft Visual Studio.

The U2352A is ideal for design validation and manufacturing engineers who conduct data logging, measurement or monitoring in a broad range of industries. This module is especially useful for customers who would like to make physical measurements.

Compare Keysight USB Multifunction Sampling DAQ in a side-by-side comparison.

USB Modular Instruments Technical Offer

Visual Studio, Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries.

MATLAB is a U.S. registered trademark of The Math Works, Inc.

High-speed USB 2.0, USBTMC-USB488 standard (compatible with Microsoft Windows operating systems)

Standalone and modular capabilities

16-bit resolution, 16 SE/8 DI multiplex analog input channels, Up to 250 kSa/s sampling rate

24-bit programmable TTL input/output channels

2 general purpose digital counter channels
