Industry-1st phase calibration standard comb generator for precision nonlinear measurements

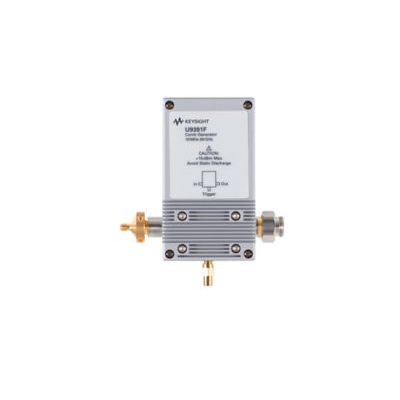

The U9391F comb generator was developed to provide precision phase calibration,referenced to the National Institute of Standards and Technology (NIST) standard, for nonlinear measurements using the PNA-X nonlinear vector network analyzer (NVNA). Comb generators generate frequency harmonics from an input RF signal. The U9391F comb generator uses InP MMIC technology which ensures superior phase stability of the comb enabling it to be used as a phase reference.

Keysights new patented comb generator offers a customer selectable USB controlled frequency divider which allows for broad range of input signal frequencies from 10 MHz to 50 GHz and small minimum tone spacing of 10 MHz. The input power and fundamental frequency have lower sensitivity than other comb generators. So you can calibrate the comb generator at a single input power level and frequency and then successfully apply the calibration across a wide range of input powers and fundamental frequencies.

The U9391-60009 sine to square wave converter is needed as the comb generator will not function at its optimum level for output frequencies above 26.5 GHz, with a sine wave input of less than 100 MHz. Therefore, U9391-60009 is included as a standard accessory for U9391F and U9391G.

Phase reference standard

Precision calibration phase reference standard for the PNA-X nonlinear vector network analyzer

Flat amplitude and phase

NIST referenced phase calibration

Sine to square wave converter provided as standard accessory (U9391F/G only) ensures the comb generator functions at its optimum level for output frequencies above 26.5 GHz

Specifications

Output frequency:10 MHz to 50 GHz

Input frequency:10 MHz to 6 GHz

1, 2, 4, 8 or 16 divide ratio

USB Interface

Plug-and-play operation with the PNA-X nonlinear vector network analyzer

Easy frequency divider control and calibration data retrieval

Fast calibration data retrieval

Durability

Rugged connectors

High repeatability throughout multiple connects and disconnects

Long operating life
