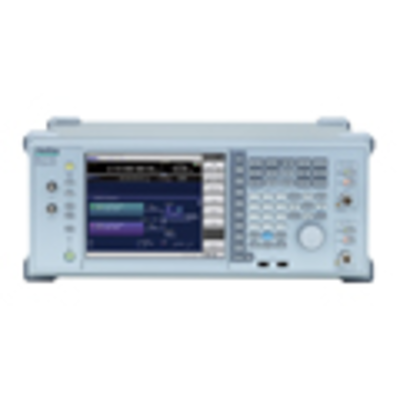

The Vector Signal Generator MG3710A is a best-of-class, multi-function, signal generator with excellent RF and baseband performance. The MG3710A features wideband vector modulation and offers built-in baseband waveform generation with large-capacity memory to ensure maximum versatility. It supports all key mobile communications and wireless LAN standards, and it also has the exceptional performance required for emerging and proprietary wireless communications technologies. Dual RF and Dual Waveform options enable a single MG3710A to output up to four independently modulated signals. The MG3710A makes it easy to implement complex test scenarios that would normally require multiple synchronized signal generators, such as:

Wanted + Interference Signals for Receiver Blocking Testing
Wanted + Two CW Tones for Receiver Intermodulation Testing
Wanted + Delayed Signals for Multipath Testing
Multiple Wanted Signals for MIMO Testing
Multiple Wanted Signals for LTE-Advanced Carrier Aggregation Testing
For these multi-signal applications, the MG3710A eliminates the cost of extra signal generators, simplifies equipment setup and calibration, streamlines system operations and speeds measurement times.

The following four types of waveform pattern can be used with the MG3710A

Built-in standard waveform patterns
Optional waveform patterns (sold separately) (MX3700xxA)
Waveforms generated by IQproducer waveform generation software (sold separately) (MX3701xxA)
IQ data generated by general-purpose signal-generation software and converted waveform patterns used by MG3710A

Data Sheet

Basic Performance

Frequency Range:
High Power Output:
SSB Phase Noise:
ACLR:
Switching Speed:

100 kHz to 2.7/4/6 GHz (1stRF Opt-032/034/036)
100 kHz to 2.7/4/6 GHz (2ndRF Opt-062/064/066)
23 dBm (CW, 400 MHz to 3 GHz)
<-131 dBc/Hz (typ.) (1 GHz, 20 kHz offset, CW)
-71 dBc (W-CDMA, Test-Model 1, 64DPCH, _5 dBm)
<600 s (frequency/amplitude, List/Sweep mode)

Baseband Performance

RF Band: Built-in,160 MHz*/120 MHz baseband generator
(*: 802.11ac. Only when using MX370111A and MX370111A-002)
Large 64 Msamples waveform memory with optional expansion to 1024 Msampls
Pre-installed standard waveform patterns
LTE (E-TM1.1 to TM3.3), W-CDMA/HSDPA, GSM/EDGE, CDMA2000 1x/1xEV-DO, Bluetooth, GPS, GLONASS, QZSS,
PDC, PHS, Broadcast (ISDB-T/BS/CS/CATV), WLAN (IEEE802.11a/11b/11g), Mobile WiMAX
Signal generation with waveform generation software (IQproducer)
LTE/LTE-Advanced, WLAN 11a/b/g/n/j/p and 11ac, Mobile WiMAX, W-CDMA/HSPA, CDMA2000 1xEV-DO
TD-SCDMA, Fading, Multi-Carrier, DVB-T/H, TDMA

Expansion Options

AWGN Generator [Opt-049/079]
C/N: _40 dB
BER Measurement Function [Opt-021]
Input bit rate: 100 bps to 40 Mbps
USB Power Sensor (sold separately)
Supports connection of two USB power sensors max.
_ Frequency Range: 50 MHz to 6 GHz [MA24106A], 10 MHz to 18 GHz [MA24118A], 10 MHz to 26 GHz [MA24126A] etc.
MIMO Signal Source: Supports local input [Opt-017]
Baseband clock, local and trigger signals can be shared between up to four MG3710A units to output phase coherency signals
synchronized with the signal output timing for configuring an 8×8 MIMO system.
Additional Analog Modulation Input for 1stRF/2ndRF [Opt-050/080]
Opt-050/080 extends to two internal modulation sources (AM/FM/_M) and one external modulation source supporting
simultaneous two-signal modulation.

Communications Interfaces

Standard 1000BASE-T, GPIB, and USB interfaces
Built-in SCPI, MG3700A/MS269xA/MS2830A compatibility modes

Security

OS upgrade to Windows 7 [Opt-029]
The MG3710A uses the Windows XP OS but it can be upgraded to Windows 7 as an option.
Note: Opt-029 can only be selected at new orders; it cannot be retrofitted to delivered units.
Secondary Storage HDD for User Data [Opt-011]
The secondary HDD storage option can be added/removed to/from the main frame to manage sensitive data,
waveform patterns, etc., that must not leave the worksite, laboratory and office.

Vector Signal Generator supporting frequencies of 100 kHz to 2.7/4/6 GHz
ACLR: -71 dBc (W-CDMA, Test-Model 1, 64DPCH, ≤+5 dBm)
Output level +23 dBm (CW, 400 MHz to 3 GHz)
Switching Time: <600 µs (List/Sweep mode)
Built-in wideband (160 MHz/120 MHz) baseband signal generator
Dual RF (Optional) provides two independent RF outputs
Dual Waveform Memory (Optional) enables two independently modulated signals per RF Output

MG3710A-032 : 1stRF 100 kHz to 2.7 GHz
MG3710A-034 : 1stRF 100 kHz to 4 GHz
MG3710A-034 : 1stRF 100 kHz to 4 GHz
MG3710A-064/164 : 2ndRF 100 kHz to 4 GHz
MG3710A-064/164 : 2ndRF 100 kHz to 4 GHz
MG3710A-002/102 : High Stability Reference Oscillator
MG3710A-011/111 : 2ndary HDD
MG3710A-017/117 : Universal Input/Output
MG3710A-021/121 : BER Test Function
MG3710A-029 : OS Upgrade to Windows 7
MG3710A-313 : Removable HDD
MG3710A-018/118 : Analog IQ Input/Output
MG3710A-041/141 : High Power Extension for 1stRF
MG3710A-042/142 : Low Power Extension for 1stRF
MG3710A-043/143 : Reverse Power Protection for 1stRF
MG3710A-045/145 : ARB Memory Upgrade 256 Msample for 1stRF
MG3710A-046/146 : ARB Memory Upgrade 1024 Msample for 1stRF
MG3710A-048/148 : Combination of Baseband Signal for 1stRF
MG3710A-049/149 : AWGN for 1stRF
MG3710A-050/150 : Additional Analog Modulation Input for 1st RF
MG3710A-071/171 : High Power Extension for 2ndRF
MG3710A-072/172 : Low Power Extension for 2ndRF
MG3710A-073/173 : Reverse Power Protection for 2ndRF
MG3710A-075/175 : ARB Memory Upgrade 256 Msample for 2ndRF
MG3710A-076/176 : ARB Memory Upgrade 1024 Msample for 2ndRF
MG3710A-078/178 : Combination of Baseband Signal for 2ndRF
MG3710A-079/179 : AWGN for 2ndRF
MG3710A-080/180 : Additional Analog Modulation Input for 2nd RF
: MX370073A
MX370075A : DFS (ETSI) Waveform Pattern [For ETSI]
MX370084A : ISDB-Tmm Waveform Pattern
MX370101A : HSDPA/HSUPA IQproducer
MX370102A : TDMA IQproducer
MX370103A : CDMA2000 1xEV-DO IQproducer
MX370104A : Multi-carrier IQproducer
MX370105A : Mobile WiMAX IQproducer
MX370106A : DVB-T/H IQproducer
MX370107A : Fading IQproducer
MX370108A : LTE IQproducer
MX370108A-001 : LTE-Advanced FDD Option [Requires MX370108A]
MX370110A : LTE TDD IQproducer
MX370110A-001 : LTE-Advanced TDD Option [Requires MX370110A]
MX370111A : WLAN IQproducer
MX370111A-002 : 802.11ac (160 MHz) Option [Requires MX370111A]
MX370112A : TD-SCDMA IQproducer
MG3710A-ES210 : 2 Years Extended Warranty Service
MG3710A-ES310 : 3 Years Extended Warranty Service
MG3710A-ES510 : 5 Years Extended Warranty Service
