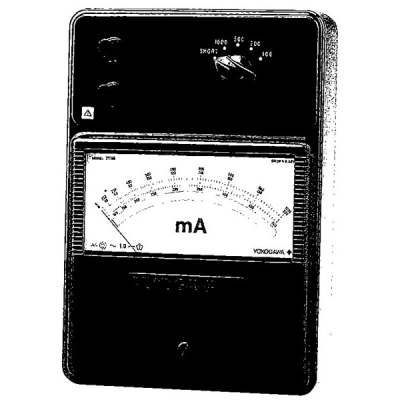

Model 2016 consists of thermocouple type ammeters and voltmeters with four different measurement ranges. They are designed to provide true RMS values of inputs, so they can be used to measure high-frequency currents and voltages (DC) up to several MHz (the maximum frequency for the voltmeter is 100 kHz). The indicator is based on a taut-band suspension system, which eliminates friction, provides good resistance to vibrations and shock impact, and ensures excellent characteristics.

Specifications – Model 2016 01

Max. Scale Value
5/10/20/50 mA

Approximate Consumed Current
375 mV

Operating Principle
Thermocouple type Class

Class
JIS C 1102: 1997 Class 1.0

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Scale Divisions
100 for ammeters, 150 for voltmeter

Overload
Approximately 1.5 times rated current (or approximate consumed current)

Operating Frequency Range
10 Hz to 5 MHz

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Linemax
250 V (Ammeters only)

Approx. External Dimension
260 × 180 × 115 mm

Approx. External Weight
2.5 kg

Optional Accessories
2291 01 Carrying case for ammeters 2292 01 Carrying case for voltmeter B964688 Spare thermocouple

Features

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
For measurements (DC) up to high frequencies

Specifications – Model 2016 02

Max. Scale Value
20/50/100/200 mA

Approximate Consumed Current
375 mV

Operating Principle
Thermocouple type Class

Class
JIS C 1102: 1997 Class 1.0

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Scale Divisions
100 for ammeters, 150 for voltmeter

Overload
Approximately 1.5 times rated current (or approximate consumed current)

Operating Frequency Range
10 Hz to 2 MHz

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Linemax
250 V (Ammeters only)

Approx. External Dimension
260 × 180 × 115 mm

Approx. External Weight
2.5 kg

Optional Accessories
2291 01 Carrying case for ammeters 2292 01 Carrying case for voltmeter B964688 Spare thermocouple

Features

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
For measurements (DC) up to high frequencies

Specifications – Model 2016 03

Max. Scale Value
100/200/500/1000 mA

Approximate Consumed Current
375 mV

Operating Principle
Thermocouple type Class

Class
JIS C 1102: 1997 Class 1.0

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Scale Divisions
100 for ammeters, 150 for voltmeter

Overload
Approximately 1.5 times rated current (or approximate consumed current)

Operating Frequency Range
10 Hz to 1 MHz

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Linemax
250 V (Ammeters only)

Approx. External Dimension
260 × 180 × 115 mm

Approx. External Weight
2.5 kg

Optional Accessories
2291 01 Carrying case for ammeters 2292 01 Carrying case for voltmeter B964688 Spare thermocouple

Features

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
For measurements (DC) up to high frequencies

Specifications – Model 2016 04

Max. Scale Value
15/30/75/150 V

Approximate Consumed Current
5 mV (200 Ω/V)

Operating Principle
Thermocouple type Class

Class
JIS C 1102: 1997 Class 1.0

Operating Position
Horizontal

Scale Length
Approximately 135 mm (Deflection Angle: 85°)

Scale Divisions
100 for ammeters, 150 for voltmeter

Overload
Approximately 1.5 times rated current (or approximate consumed current)

Operating Frequency Range
10 Hz to 1 kHz

Operating Temperature Range
0 ~ 40 ºC

Operating Humidity Range
30 ~ 75% RH

Storage Temperature Range
-10 ~ 50 ºC

Storage Humidity Range
25 ~ 80% RH

Linemax
250 V (Ammeters only)

Approx. External Dimension
195 × 170 × 87 mm

Approx. External Weight
1.8 kg

Optional Accessories
2291 01 Carrying case for ammeters 2292 01 Carrying case for voltmeter B964688 Spare thermocouple

Features

Taut-band suspension system eliminates friction and provides good resistance to shock impact.
For measurements (DC) up to high frequencies
