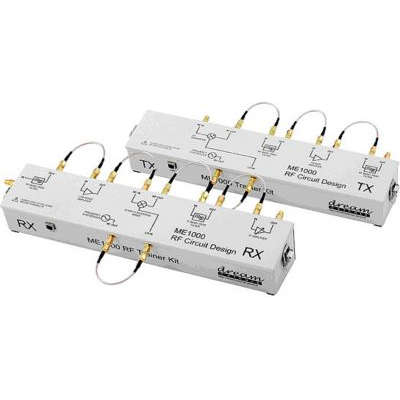

The RF transceiver kit consists of a transmitter unit and a receiver unit in superheterodyne architecture. The transceiver units are made up of various RF building-block modules such as filter, low noise amplifier, power amplifier, mixer and oscillator. The RF transceiver kit is controlled by a Windows-based Control Panel software via USB. A Measurement Automation Program is provided to demonstrate automated characterization and test of RF circuits. A signal generator and a spectrum analyzer are required to run this program.

The transceiver kit also includes 8 lab sheets in editable Microsoft Word format. Each lab requires 3 hours to complete. Model answers are provided with all lab sheets.

RF transceiver kit & accessories

Lab sheets & model answers

Problem-based assignments

Covers 27 hours of labs
