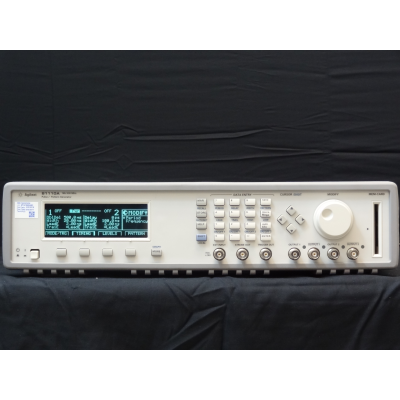

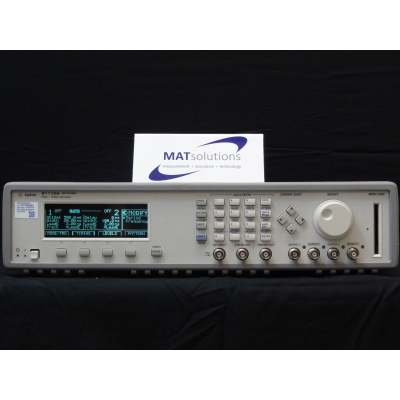

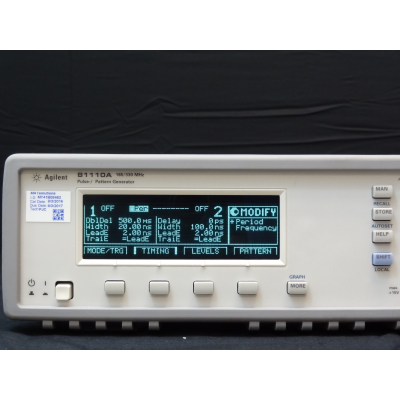

Keysight (Agilent) Technologies 81110A /2x11A Pulse Pattern Generator, 165/330 MHz

Key Features & Specifications

• Single-/dual-channel pulse pattern generator

• 165 MHz, 10 V, 50 Ω into 50 Ω (81111A) OR

• 330 MHz, 3.8 V, 50 Ω into 50 Ω (81112A)

• Triggerable / PLL operation selectable

• Pulse / burst / pattern modes selectable

• Self-cal for improved timing accuracy

• BNC outputs: single-ended (81111A) // differential (81112A)

  Description

  The Keysight (Agilent) 81110A with one or two Keysight (Agilent) 81111A output modules is a single/dual-channel 165 MHz Pulse Pattern Generator. In comparison to the Keysight (Agilent) 81104A, the 81110A offers the same performance on a wider frequency range. Delay and pulse width and repetition rate in non-PLL mode are more accurate (3% or 0.5% with self-calibration).

  Alternatively, the Keysight (Agilent) 81110A with one or two Keysight (Agilent) 81112A output modules is a single/dual-channel 330 MHz Pulse Pattern Generator. Instead of variable transitions, 800 ps or 1.6 ns edges are selectable. The output impedance is 50 Ohm and provides up to 3.8 Vpp into 50 Ohm. Internal channel addition is not available.

  Note: Each Keysight (Agilent) 81110A 165 MHz single-/dual-channel Pulse Pattern Generator requires one/two of the output channels Keysight (Agilent) 81111A (165 MHz, 10 V, 50 Ohm into 50 Ohm).

  Each Keysight (Agilent) 81110A 330 MHz single-/dual-channel Pulse Pattern Generator requires one/two of the output channels Keysight (Agilent) 81112A (330 MHz, 3.8 V, 50 Ohm into 50 Ohm).

  Options installed:

  81111A  10V 165 MHZ Output Channel for 81110A

  81111A  10V 165 MHZ Output Channel for 81110A
