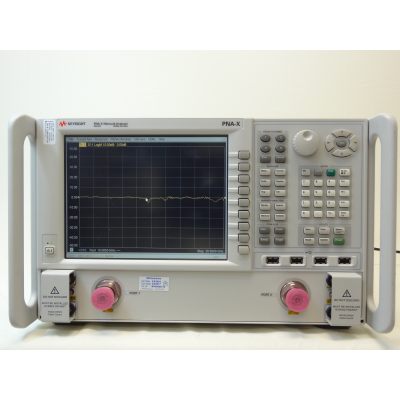

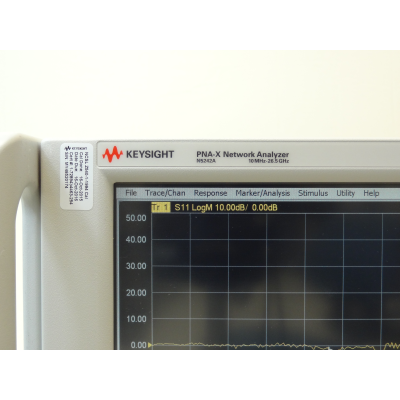

Keysight (Agilent) Technologies N5242A/200/285/H85 PNA-X Microwave Network Analyzer, 26.5 GHz

Key Features & Specifications

• 10 MHz to 26.5 GHz

• 2- or 4-ports with two built-in sources

• 132 dB system and 130 dB receiver dynamic range, 32,001 points, 200 channels, 15 MHz IF bandwidth

• High output power (+18 dBm), low harmonics (-60 dBc) and a wide power sweep range (38 dB)

• Best dynamic accuracy: 0.1 dB compression with +13 dBm input power at the receiver

• Low noise floor of -114 dBm at 10 Hz IF bandwidth

  Description

  World´s widest range of single-connection measurement applications

  The PNA-X network analyzer is the world´s most integrated and flexible single-connection microwave test engine for measuring active devices such as amplifiers, mixers, and frequency converters. You can choose from five frequency models to meet your specific device test needs: 13.5, 26.5, 43.5, 50, and 67 GHz. The PNA-X provides unrivaled configurability with a built-in second source, combiner, and internal signal-routing switches.

  Options installed:

  285  2 Port analyzer no bias tees

  H85  Add high power configurable capability

  200  2 ports, single source

  Accessories included are pictured.
