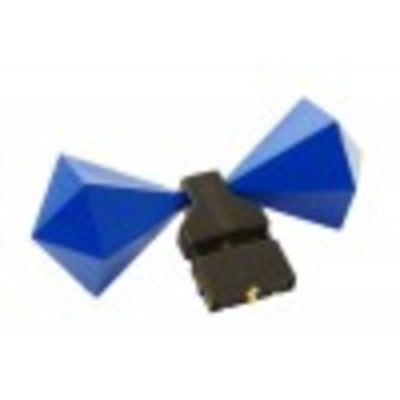

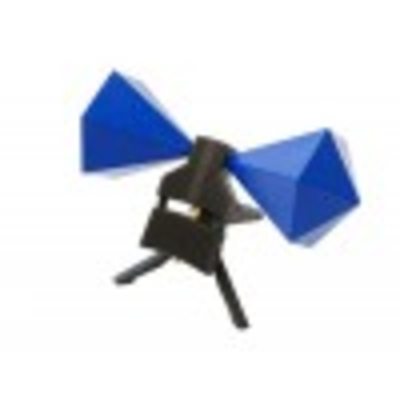

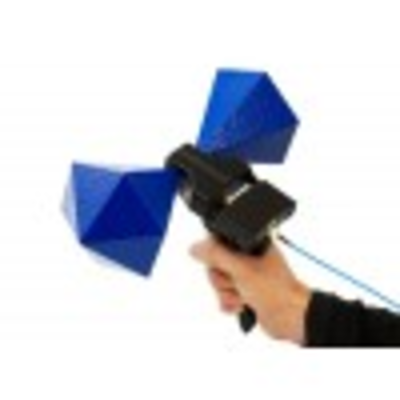

Aaronia BicoLOG 20300 X (active)
Product Details
-
Manufacturer: Aaronia
-
Model: 20300X
-
Description:
Same as active broadband antenna BicoLOG 20100 X but with highly expanded frequency range up to 3GHz for high EMC compliance standards. Worlds most compact EMC antenna with this performance.
The practical biconical emc antennas of the BicoLOG Antenna-Series are the perfect tool for performing economic and still highly accurate measurements in the lower frequency range up to 20MHz.
These radial-isotropic-antenna are already delivered with typical, extensive calibration data in order to facilitate calibration for various measurement systems.
The BicoLOG 20300 emc antenna is accompanied with a calibration sheet and thus offers maximum measurement precision right from the beginning!
The high-quality measurement-antennas of the BicoLOG series are very light-weight and as such perfectly suited for mobile application, as well as usage in the laboratory.
Every BicoLOG-Antenna has a high-grade N connector and as such can be connected to nearly all measuring equipment.
Devices, like Spectrum Analyzer, with SMA connector can be used with our optional, top-quality adapter.
Frequency range: 20MHz to 3GHz Nominal impedance: 50 Ohm Gain: -5dBi to 41dBi Only a single biconical antenna for the complete frequency range from 20MHz up to 3GHz Optimal for usage with spectrum analysers for EMC measurement Suitable for mobile use Robust design Small weight and dimensions Made in Germany 10 years warranty
