Aaronia HyperLOG 4025X (active)
Product Details
-
Manufacturer: Aaronia
-
Model: 4025X
-
Description:

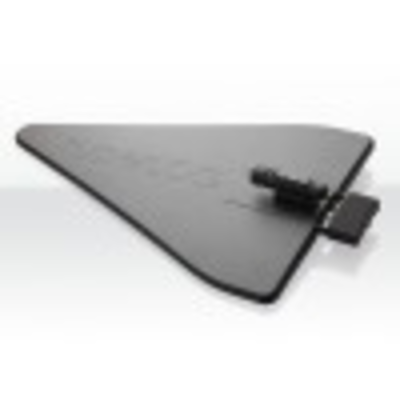

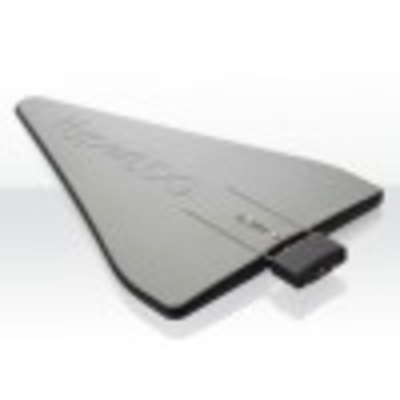

Ultra high gain ACTIVE directional antenna. Wide frequency range from 400MHz to 2.5GHz. Optional laser, compass etc.. Detects lowest RF sources!
Ultra high gain ACTIVE directional antenna. Wide frequency range from 400MHz to 2.5GHz. Optional laser, compass etc..
Detects lowest RF sources!
Every HyperLOG antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality GOLD COATING, a high-tech antenna-case (radome) which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection and an SMA connector (18GHz version) with twist protection.
Compatible with any Spectrum Analyzer brand Design: ACTIVE directional Logarithmic-periodic Frequency range: 400MHz to 2,5GHz Nominal impedance: 50 Ohm VSWR: <1:2 (typ.) Gain: 44dBi (typ.) Antenna factor: See data sheet graph RF connection: SMA (f) or N (see optional adapter) Tripod connection: 1/4 Interface: USB 2.0/1.1 Calibration points: 211 (10MHz-steps) Dimensions (L/W/D): 590×360×30 mm Weight: 1400gr Warranty: 10 years 10 years warranty
GPS Logger including 3D Gyro / 3D Tilt / Compass / Height sensor & Accelerometer
Option 501 (1mW Red Laser)

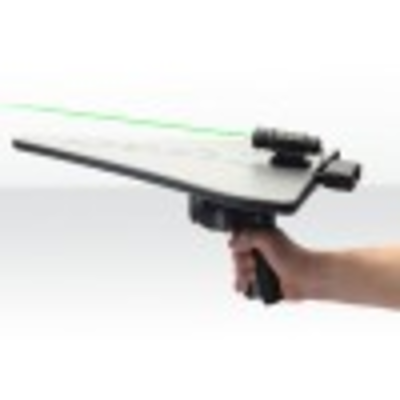

Option 502 (Tactical 150mW Green Power-Laser)
Option 510 (Small Compass Ball)
Option 530 (Waterproof Housing)
