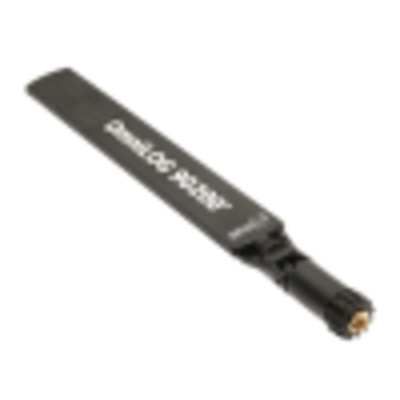

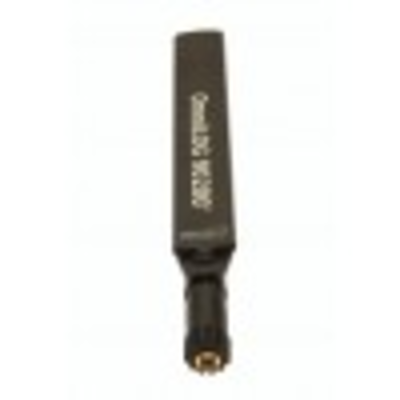

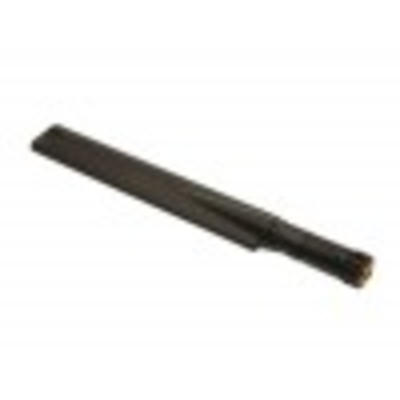

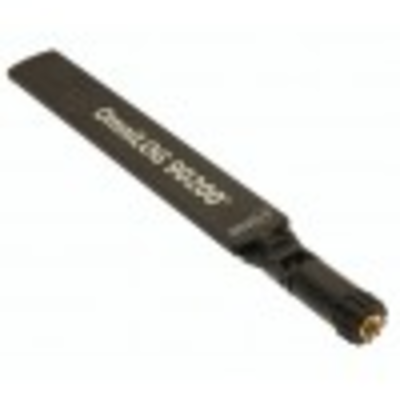

Aaronia OmniLOG 90200
Product Details
-
Manufacturer: Aaronia
-
Model: 90200
-
Description:
Excellent cost effective omni directional antenna for radial isotropic measurements from 700MHz to 2,5GHz e.g. RF sources like LTE, GSM, UMTS, 3G, WLan/Wifi etc..
The OmniLOG 90200 Antenna is specially developed for a quasi isotropic (radial isotropic) measurement in the GSM (GSM900, GSM1800, GSM1900), UMTS and 2,4GHz WLAN frequency ranges. It fits perfectly in addition to our SPECTRAN measurement devices.
Compared to our HyperLOG-Antennas, the OmniLOG antenna offers the possibility for a direct, radial measurement of field strength without the need to move the antenna to the source. This offers the possibility to get a direct field strength reading without any hassle.
Our PC Analysis-Software supports the OmniLOG 90200 as broadband antenna too and using this software, the OmniLOG antenna can also be used with our Rev.3 Spectrum Analyzer models in the complete bandwith.
Its extremely small size, compared to our HyperLOG antennas, allows measurements without attracting attention or even for covert measurements.
Every OmniLOG Antenna offers a high-grade SMA connector and as such can be connected directly to our SPECTRAN Analyzer.
Design: Omni-Directional Nominal impedance: 50 Ohms Frequency range: 700MHz – 2,5GHz VSWR (typ): < 3:1 RF-connection: SMA (male) Temperature range: – 20C to +70C Shock: 40G at 10msec Thermal Shock: – 20C to +70C:10 cycles Dimensions (L/W): 210 × 20mm Weight: 70gr Warranty: 10 years
