THE 9.4GHz remote controllable Spectrum Analyzer for the pro at an incredible price incl. real-time USB Analyzer-Software for MAC-OS, Linux, Windows. Supports up to +40dBm RF input power to meet any Pre-Compliance measurement.

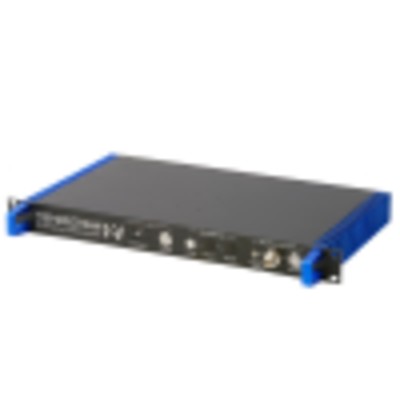

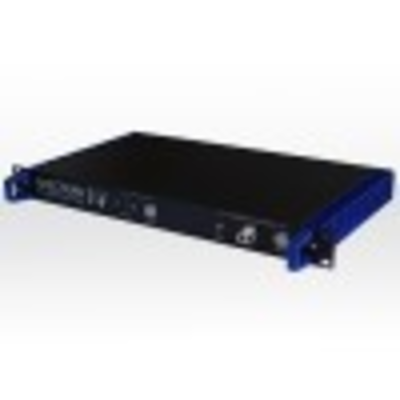

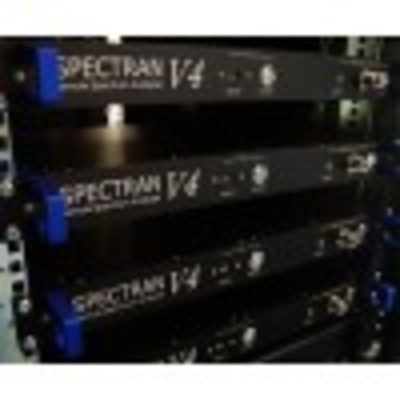

Our 19 inch Spectrum Analyzer can be used in any standard 19 rack. The RSA series offer the possibility to control the analyzer via LAN / WLAN or USB. These interfaces allow complete integration into an existing network. The Spectrum Analyzer can either be remotely controlled via MCS software or via the integraded web-interface (by using the optional web-interface software EMF-Monitor). The system is based on a Linux operating system and can be expanded or customized manually (VPN, GSM dial-up, etc.).

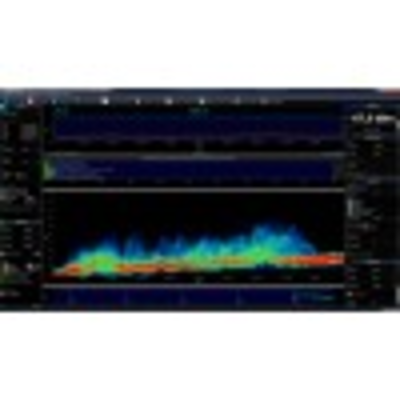

Gapless Spectrum Streaming with optional web-interface (Software EMF-Monitor) Optional Software EMF-Monitor allows access to unlimited RSA Analyzers from one centralized location Eliminates trips to difficult locations Remote controllable via LAN / WLAN or USB Fits to any standard 19 rack Small and compact, one height unit only (1U) Frequency range: 1MHz to 9,4GHz DANL: -155dBm(1Hz) DANL with Preamp: -170dBm(1Hz) Max. power: +20dBm (opt. +40dBm) Lowest sample time: 5mS Resolution (RBW): 200Hz to 50MHz EMC filter: 200Hz, 9kHz, 120kHz, 200kHz, 1,5MHz, 5MHz Units: dBm, dBV, V/m, A/m, W/m_, dBV/m, W/cm_ etc. Detectors: RMS, Min/Max Demodulator: AM, FM, PM, GSM Input: 50 Ohm N, RF-input (f) Accuracy: +/- 1dB (typ.) 14Bit Dual-ADC DDC Hardware-Filter 150 MIPS DSP (CPU) Interface: USB 2.0/1.1/LAN Dimensions (L/W/D): 19 inch rack mount Weight: 3450gr Warranty: 10 years (internal PC 2 years )

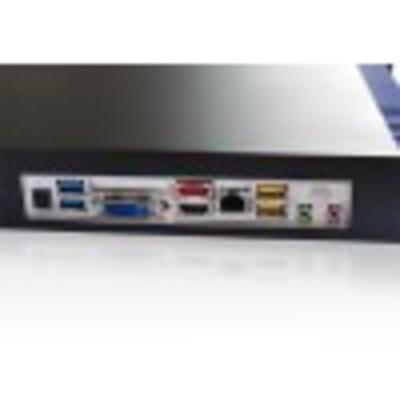

Integrated PC:

Software \EMF-Monitor\
Option 900 (9kHz Frequency Extension)
Option 020 (15dB preamplifier)
40dB EMC Preamplifier
Option 002 (0,5ppm TCXO TIMEBASE)
Option 205 (10GHz Realtime Peak POWER-METER)
Highend i5 EMF-Monitor
Option 800 (8GHz – 10dB Sensitivity Extension)
Zus?tzliche K?hlrippe
