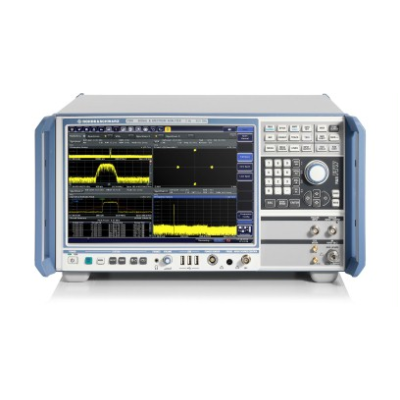

The high-performance R&SFSW signal and spectrum analyzer was developed to meet demanding customer requirements. Offering low phase noise, wide analysis Bandwidth and straightforward and intuitive operation, the analyzer makes measurements fast and easy.

Frequency range from 2 Hz to 8/13.6/26.5/43.5/50/67/85 GHz (with external harmonic mixers from Rohde & Schwarz up to 110 GHz)
Low phase noise of 137 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
88 dBc dynamic range (with noise cancellation) for WCDMA ACLR measurements
Up to 2 GHz analysis Bandwidth
< 0.4 dB total measurement uncertainty up to 8 GHz
Real-time analysis up to 160 MHz Bandwidth
High-resolution 12.1" (31 cm) touchscreen for convenient operation
Multiple measurement applications can be run and displayed in parallel

R&SFSW : Signal and Spectrum Analyzer
R&SFSW-B4 : OCXO Precision Reference Frequency
R&SFSW-B8 : Resolution Bandwidths > 10 MHz
R&SFSW-B8 : Resolution Bandwidths > 10 MHz
R&SFSW-B10 : External Generator Control
R&SFSW-B13 : Highpass Filters for Harmonic Measurements
R&SFSW-B17 : Digital Baseband Interface
R&SFSW-B71 : Analog Baseband Inputs
R&SFSW-B71 : Analog Baseband Inputs
R&SFSW-B71 : Analog Baseband Inputs
R&SFSW-B71 : Analog Baseband Inputs
R&SFSW-B71E : 80 MHz Bandwidth for Analog Baseband Inputs
R&SFSW-B18 : Spare Solid State Disk (removable hard drive)
R&SFSW-B21 : LO/IF Ports for External Mixers
R&SFSW-B21 : LO/IF Ports for External Mixers
R&SFSW-B21 : LO/IF Ports for External Mixers
R&SFSW-B24 : Preamplifier, 100 kHz to 8 GHz/13 GHz
R&SFSW-B24 : Preamplifier, 100 kHz to 26 GHz
R&SFSW-B24 : Preamplifier, 100 kHz to 43 GHz
R&SFSW-B24 : Preamplifier, 100 kHz to 50 GHz
R&SFSW-B24 : Preamplifier, 100 kHz to 50 GHz
R&SFSW-B24 : Preamplifier, 100 kHz to 67 GHz
R&SFSW-B25 : Electronic Attenuator, 1 dB steps
R&SFSW-B33 : USB Mass Memory Write Protection
R&SFSW-B160R : Real-Time Spectrum Analyzer, 160 MHz
R&SFSW-B28 : 28 MHz Analysis Bandwidth
R&SFSW-B40 : 40 MHz Analysis Bandwidth
R&SFSW-B80 : 80 MHz Analysis Bandwidth
R&SFSW-B160 : 160 MHz Analysis Bandwidth
R&SFSW-B320 : 320 MHz Analysis Bandwidth
R&SFSW-B500 : 500 MHz Analysis Bandwidth
R&SFSW-B2000 : 2 GHz Analysis Bandwidth
R&SFSW-K6 : Pulse Measurements
R&SFSW-K6S : Time Side Lobe Measurement
R&SFSW-K7 : Analog Modulation Analysis AM/FM/?M
R&SFSW-K10 : GSM, EDGE, EDGE Evolution and VAMOS measurements
R&SFSW-K17 : Multicarrier Group Delay Measurements
R&SFSW-K18 : Amplifier Measurements
R&SFSW-K30 : Noise Figure Measurements
R&SFSW-K33 : Security Write Protection of solid state drive
R&SFSW-K40 : Phase Noise Measurements
R&SFSW-K54 : EMI Measurement
R&SFSW-K60 : Transient Measurement Application
R&SFSW-K60C : Transient Chirp Measurement
R&SFSW-K60H : Transient Hop Measurement
R&SFSW-K70 : Vector Signal Analysis
R&SFSW-K72 : 3GPP FDD (WCDMA) BS Measurements (incl. HSDPA and HSDPA+)
R&SFSW-K73 : 3GPP FDD (WCDMA) MS Measurements (incl. HSUPA and HSUPA+)
R&SFSW-K76 : 3GPP TDD (TD-SCDMA) BS Measurements
R&SFSW-K77 : 3GPP TDD (TD-SCDMA) UE Measurements
R&SFSW-K82 : CDMA2000 BS Measurements
R&SFSW-K83 : CDMA2000 MS Measurements
R&SFSW-K84 : 1xEV-DO BS BS Measurements
R&SFSW-K85 : 1xEV-DO MS BS Measurements
R&SFSW-K91 : IEEE 802.11a/b/g Measurements
R&SFSW-K91P : IEEE 802.11p Measurements
R&SFSW-K91N : IEEE 802.11n Measurements
R&SFSW-K91AC : IEEE 802.11ac Measurements
R&SFSW-K100 : EUTRA/LTE FDD BS Measurements
R&SFSW-K101 : EUTRA/LTE FDD UE Measurements
R&SFSW-K102 : EUTRA/LTE BS MIMO Measurements
R&SFSW-K103 : EUTRA/LTE UL Advanced UL Measurements
R&SFSW-K104 : EUTRA/LTE TDD BS Measurements
R&SFSW-K105 : EUTRA/LTE TDD UE Measurements
R&SVSE : Vector Signal Explorer Software
R&SFS-K96 : OFDM Vector Signal Analysis Software
R&SFS?K96PC : OFDM Vector Signal Analysis Software
R&SFS-K10xPC : EUTRA/LTE and LTE- Advanced Signal Analysis Software
R&SFS-K130PC : Distortion Analysis Software
R&SFSW-K160RE : 160 MHz Real-Time Measurement Application POI > 15 ?s
R&SFSW-K192 : DOCSIS 3.1 OFDM Downstream
R&SFSW-U40 : Analysis Bandwidth Upgrade from 28 MHz to 40 MHz
R&SFSW-U80 : Analysis Bandwidth Upgrade from 40 MHz to 80 MHz
R&SFSW-U160 : Analysis Bandwidth Upgrade from 80 MHz to 160 MHz
R&SFSW-U160R : Real-Time Spectrum Analyzer
R&SFSW-U320 : Analysis Bandwidth Upgrade from 160 MHz to 320 MHz
R&SFSW-U500 : Analysis Bandwidth Upgrade from 80 MHz to 500 MHz
