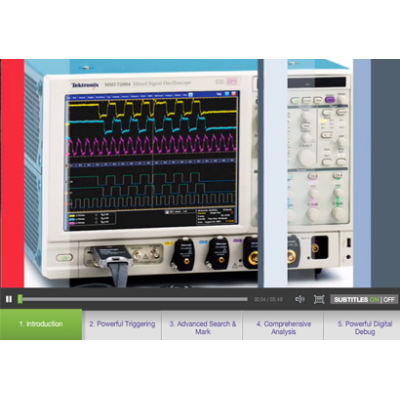

Tektronix DPO70804C (MSO/DPO70000) Digital & Mixed Signal Oscilloscope
Product Details
-
Manufacturer: Tektronix
-
Model: DPO70804C
-
Description:
Tektronix 8 GHz Bandwidths, 4 channels oscilloscope.
The MSO/DPO70000 Series oscilloscope delivers exceptional signal acquisition performance and analysis capability. Discover your real signals and capture more signal details with the industry’s highest waveform capture capability. Automate setup, acquisition and analysis of high-speed serial data signals with a toolset engineered to deliver faster design and compliance testing.
- Up to 33 GHz and 100 GS/s
- Less than 9ps rise time
- Lower than 0.50% vertical noise with 5.5 effective bits
- 16 logic channels with 80ps timing resolution (MSO models only)
- Over 30 customizable application-specific software analysis packages.
Features |
Benefits |
| Bandwidth of up to 33 GHz | Accurate characterization, jitter characterization and compliance testing of designs like 32 Gbaud Coherent Optical and PCIe 3.0 with data rates up to 20Gb/sec. |
| Industry leading combination of analog & digital sample rate | Enables thorough analysis, channel to channel, and multi-lane measurements. Capture up to 100GS/sec on analog channels and 12.5GS/sec on digital channels in a single instrument. |
| Excellent signal fidelity, minimum noise and highest effective number of bits (ENOB) | Perform your tests with more available margin and trust that you are seeing your real signal to make more precise measurements. |
| Industry's highest waveform capture rate on all 4 channels | Efficient discovery & capture of intermittent (rare) faults or events. |
| 16 logic channels with 80 psec timing resolution (MSO70000 Series only) | Precisely understand logic circuit performance with correlated analog/digital signal views. |
| Analog/digital probing with a variety of connectivity support options | Flexible probing solutions for small component leads or board vias that remove the need for special fixturing/costs. Industry's fastest 33 GHz TriMode™ probe and 2.5 GHz differential logic probe. |
| Pinpoint® triggering and high-speed serial pattern triggering up to 6.25 Gb/s | Speed up debug of buses like PCIe, SATA, USB and others through standards-specific trigger functions. |
| Comprehensive digital serial analysis solution - probing, triggering, decode and analysis | Faster design and compliance testing with a toolset engineered to automate setup, acquisition and analysis of high-speed serial data signals like USB, PCIe and DisplayPort. Industry leading combination of analog & digital sample rate. |
| Advanced Serial Analysis options for PCIe, I2C, SPI, RS-232/422/485/UART, USB2.0, MIPI D-PHY CSI & DSI, 8b/10b, CAN, LIN, FlexRay and MIL-STD1553B | Enables automated capture and viewing of where control and data packets begin and end as well as identifying subpacket components such as address, data, CRC, etc. for common serial bus traffic. |
| Offline Waveform Analysis | Enables better time and resource utilization; view, measure, and analyze data captured in your lab, independent of scope hardware with TekScope AnywhereTM |
Opt. BRR Automated compliance and measurement solution for BroadR-Reach 1.2.
Opt. D-PHY MIPI® D-PHY Essentials – Transmitter Debug, Characterization, and Compliance Test Solution.
Opt. DDRA, LP-DDR4 Complete memory interface analysis package for DDR1/2/3/4, LPDDR1/2/3/4 and GDDR3/5. Option LP-DDR4 for LPDDR4 is available to use only on MSO/DPO70000 oscilloscopes.
Opt. DJA Simplifies identifying signal integrity concerns, jitter and their related sources and provides the highest sensitivity and accuracy available for real-time oscilloscopes.
Opt. ET3 Automated characterization, compliance and full PHY layer support for 10BASE-T, 100BASE-TX and 1000BASE-T.
Opt. HSIC Electrical signal quality test and protocol validation of HSIC host and device designs.
Opt. LSA Low-speed automotive serial analysis bundle, includes CAN trigger, CAN/LIN decode and analysis (includes TDSVNM).
Opt. MOST Electrical compliance and debug test solution for MOST50 and MOST150 host and device designs.
Opt. MTM Compliance verification and interoperability testing to communication and computing serial standards masks.
Opt. PWR Power measurement and analysis solution for characterization and testing of power devices and power supplies including power quality and harmonic testing.
Opt. SR-810B Quickly analyze 8b/10b serial buses with automatic decode and search on serial packet content.
Opt. SR-AERO MIL-STD-1553B protocol trigger and decode of serial packet content.
Opt. SR-AUTO CAN, LIN, and FlexRay protocol trigger and decode of serial packet content.
Opt. SR-COMP RS-232/422/485/UART protocol trigger and decode of serial packet content.
Opt. SR-DPHY MIPI® D-PHY automatic decode and search on serial packet content.
Opt. SR-EMBD I2C and SPI protocol trigger and decode of serial packet content.
Opt. SR-ENET 10BASE-T and 100BASE-TX protocol search and decode of serial packet content.
Opt. SR-PCIE PCI Express serial bus support with automatic trigger and decode on serial packet content.
Opt. SR-USB Automated compliance testing and verification of USB 2.0 and 3.0 for low-speed, full-speed, high speed and superspeed.
Opt. SVA SignalVu AM/FM/Direct Audio Measurements.
Opt. SVE SignalVu wideband spectral analysis and measurements.
Opt. SVM SignalVu General-purpose Modulation Analysis
Opt. SVO SignalVu Flexible OFDM Analysis.
Opt. SVP SignalVu Advanced Pulse Signal Analysis.
Opt. SVT SignalVu Settling Time Measurements – Frequency and Phase.
Opt. USB2 Perform "one touch" compliance testing with automated instrument and test mode control.
Opt. USBPWR Automated compliance testing for USB power adapters to USB2.0 Battery Charger Specification v1.1 and IEC 62684.
