Hp/Agilent/Keysight N2819A 800 MHz 10:1 Differential Probe with AutoProbe
Product Details
-
Manufacturer: Hp/Agilent/Keysight
-
Model: N2819A
-
Description:
The N2819A differential probe provides superior differential signal measurements required for todays high-speed power measurements.

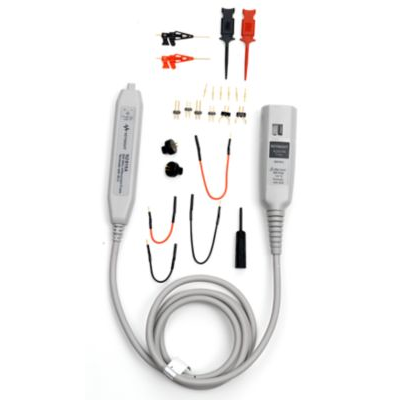

The N2793A differential probe provides superior high-speed differential signal measurements required for todays high-speed power measurements, vehicle bus measurements and high-speed digital system designs. The N2793A differential probes offer 10:1 attenuation setting, allowing them to be used for a broad range of applications. The probe comes with a variety of probe tip accessories for use with large and small components in tight places. The probe also comes with a DC blocking capacitor to block out unwanted DC components of the input signal.
The differential probes have an input resistance of 200 k and low input capacitance of 1 pF to minimize circuit loading. The N2819A probe is compatible with select InfiniiVision and Infiniium oscilloscope with 50 AutoProbe interface input. The probe is powered directly by the InfiniiVision and Infiniium AutoProbe interface. For use with non-AutoProbe input oscilloscope, use the N2793A.
Wide dynamic range for various applications: 15V differential, 30V common mode
High input resistance and low input capacitance for low probe loading: 200 k//1pF between inputs
Direct connection to AutoProbe interface (no power supply required)
Ideal for high-speed power measurements, digital differential buses and vehicle serial buses (CAN, LIN, FlexRay)
