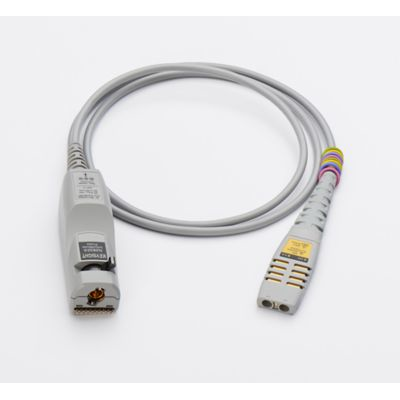

Hp/Agilent/Keysight N2832A 13 GHz InfiniiMax III+ Series Probe Amplifier
Product Details
-
Manufacturer: Hp/Agilent/Keysight
-
Model: N2832A
-
Description:
The N2832A Series InfiniiMax III+ probing system is the next generation of InfiniiMax probing, greatly expanding the measurement capability and usability of a probe capable of measuring all the components of a differential signal.
The N2832A Series InfiniiMax III+ probing system is the next generation of InfiniiMax probing, greatly expanding the measurement capability and usability of a probe capable of measuring all the components of a differential signal. The built-in InfiniiMode technology allows customers to switch differential, single-ended, and common mode without adjusting probe tip connections.
The N2832A Series probe&rsquo s InfiniiMode provides the following mode of operation:
A &ndash B (differential)
A &ndash ground (signal singled A)
B &ndash ground (signal singled B)
(A+ B)/2 &ndash ground (common mode)
The InfiniiMax III+ works with the full array of InfiniiMax III probe heads and supports the full bandwidth of the InfiniiMax III+.
Bandwidth
13 GHz (-3 dB)
Tr = 33.4 psec (10-90%)
Input range
DC attenuation ratio: 10:1 or 5:1
Input voltage range: 2.5 Vpp or 1.25 V at 5:1 attenuation, 5 Vpp or 2.5 V at 10:1 attenuation
Input common mode range: 7 VDC to 100 Hz, 1.25 V at >100 Hz at 5:1 attenuation, 2.5 V > 100 Hz at 10:1 attenuation
Offset range: 16 V when probing a single-ended signal
Input impedance
DC input resistance : R diff = 100 k 2%, R se = 50 k 2%
Input resistance at > 10 kHz: R diff = 1 k, R se = 500
Input capacitance : C diff = 32 fF, C se = 44 fF (with ZIF probe head)
Connectivity
N2848A InfiniiMax III QuickTip probe head and N5445A InfiniiMax III browser
N5439A InfiniiMax III ZIF probe head
N5444A InfiniiMax III 2.92 mm/3.5 mm/SMA probe head
N5441A InfiniiMax III solder-in probe head
