Migratefrom 856xE/EC to X-Series signal analyzers

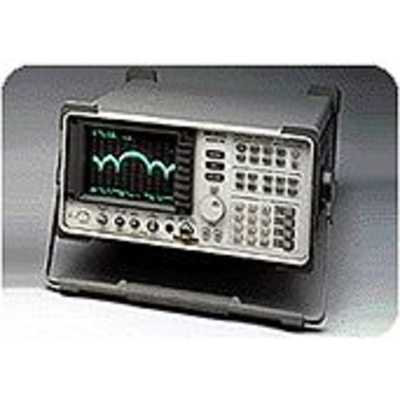

The Keysight 8563E portable microwave spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer has a standard frequency range of 9 kHz to 26.5 GHz (preselected from 2.75 GHz to 26.5 GHz), with optional low-end frequency coverage to 30 Hz.

The 8563E combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a MIL-rugged package built to withstand harsh environmental conditions.

• Continuous 30 Hz to 26.5 GHz sweep
• Fast digital resolution bandwidths of 1, 3, 10, 30 and 100 Hz
• Adjacent channel power, channel power, carrier power, occupied bandwidth percentage and time-gated measurements standard
• Precision timebase and 1 Hz counter resolution
• MIL-T-28800 rugged
• Measurement personalities for digital radio and phase noise measurements

Option 001 - second IF output, Agilent 8560 series

Option 002 - built-in tracking generator
