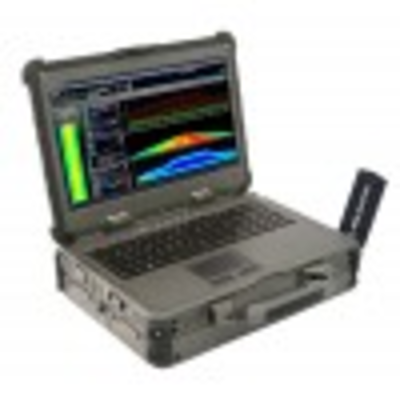

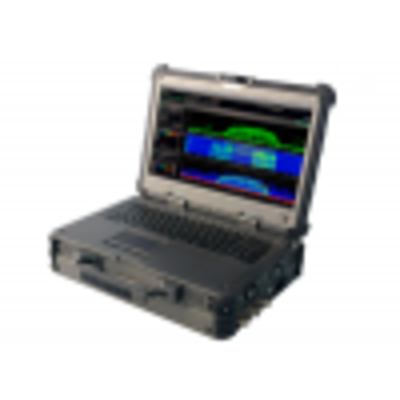

Aaronia presents the SPECTRAN XFR V5 PRO, a Real-Time Spectrum Analyzer designed to capture even shortest signal transmissions.

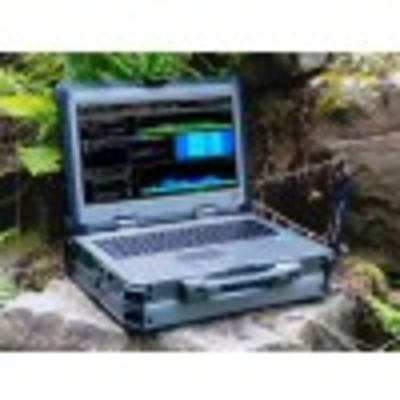

With this Spectrum Analyzer you can master all the challenges. Whether it is for spectrum monitoring, RF and microwave measurements, Interference hunting, EMC testing or Wi-Fi and wireless network measurements, the SPECTRAN V5 is the ideal Spectrum Analyzer for making reliable and fast measurements. It provides a powerful, extremely impact resistant Outdoor notebook and a high-end spectrum analyzer in one compact device. The XFR V5 PRO has been independently tested in accordance with MIL-STD-810G, IP65 and MIL-STD-461F.

The easy to use software is suited for detecting unknown or illegal transmissions across a wide frequency
range. With an unlimited recording time (needs approx. 1GB hard disk space per minute) the XFR V5
PRO allows to store several hours of real-time data. Once recorded the entire measurement data can be
re-loaded into the software. The optional I/Q Generator allows to generate the recorded signals 1:1 up to 6GHz.
Several helpful features allow a deep investigation of the Real-Time measurement or recorded data, e.g.

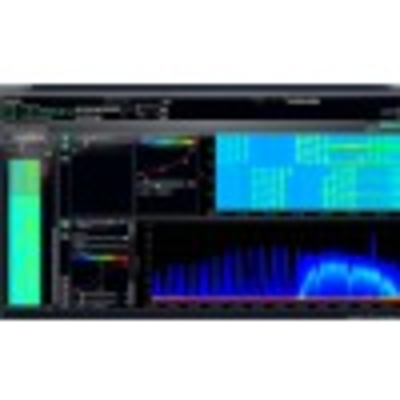

a 3D Spectrogram view which displays a signal like newer seen before.

The extreme speed predestines the unit as counter-surveillance measurement receiver, as it is able to capture any kind of bug / hidden camera / RF transmitter etc.

Fastest Counter-surveillance Receiver in the World

Up to 175MHz Real-Time bandwidth POI below 1?S Unlimited recording time (needs 1GB / min.) Up to 4TB ultra-fast SSD recording storage Real-time I/Q streaming via USB (in preparation) Very fast sweep mode, scans 20GHz in less than 20mS Patented polyphase filter technology Patented spectrum analysis (modulated LO) First analyzer with ultra fast LO sweeps (?S DDS sweep) Compact and lightweight Optional I/Q Generator (6GHz) and Power Meter (40GHz) Includes Worlds first 3D Real-Time Spectrum monitoring and recording Software RTSA Suite (gapless streaming and playback)

Unit is currently supplied with BETA firmware, which is continuosly updated via free firmware updates (Updater included).

Option 175 (175MHz Real-Time Bandwidth)
Option 002 (0,005ppm OCXO Timebase)
