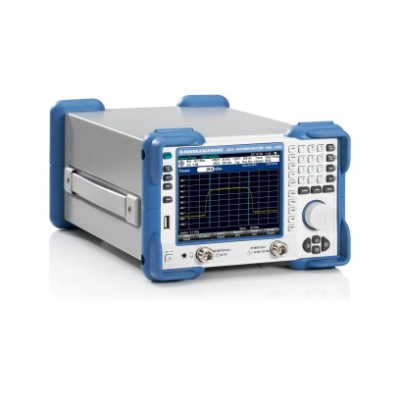

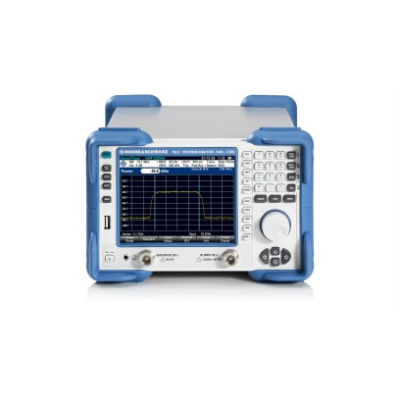

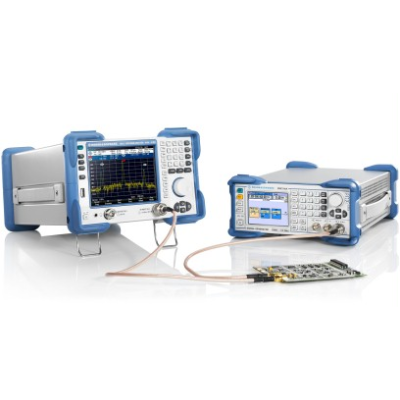

The R&S FSC is a compact, cost-efficient solution that offers all essential features of a professional spectrum analyzer with Rohde & Schwarz quality. It covers a wide range of applications from simple development tasks to production, or can be used for training RF professionals. Moreover, it is ideal for applications in service or maintenance. The R&S FSC features a wealth of functions for simplifying and speeding up the development and testing of RF products. Its good RF characteristics and its high measurement accuracy help to ensure reliable and reproducible measurement results.Four different R&S FSC models are available in the Frequency range from 9 kHz to 3 GHz or 6 GHz. Separate models with tracking generator are available for each Frequency range. An optional preamplifier that is available for all models increases sensitivity for measuring weak signals. Owing to its compact design, the R&S FSC takes up only a minimum of space on a lab bench. When installed in a rack, two R&S FSC or one R&S FSC and oneR&S SMC signal generator situated next to each other fit into the 19 space.

Frequency range 9 kHz to 3 GHz or 6 GHz
Resolution Bandwidths 10 Hz to 3 MHz
High sensitivity (< 141 dBm (1 Hz), with optional preamplifier < 161 dBm (1 Hz ))
High third order intercept (> 10 dBm, typ. 15 dBm)
Low measurement uncertainty (< 1 dB)
Internal tracking generator (model .13/.16)
Compact dimensions
Low power consumption (12 W)

R&S FSC : Spectrum Analyzer
R&S FSC-B22 : Preamplifier, 100 kHz to 3 GHz/6 GHz
R&S HA-Z210 : Spare LAN Cable
R&S FSH-Z36 : Headphones
R&S ZZA-T33 : 19" Adapter
R&S ZZA-T34 : 19" Adapter
R&S ZZA-T37 : 19" Adapter
R&S RAM : Matching Pad, 50 ?/75?
R&S RAZ : Matching Pad, 50 ?/75 ?
R&S FSH-Z38 : Matching Pad, 50 ?/75 ?,
R&S HZ-15 : Compact Probe Set for E and H Near-Field Measurements, 30 MHz to 3 GHz
R&S HZ-16 : Preamplifier 3 GHz, 20 dB, Power Adapter 100 V to 230 V, for R&S HZ-15
R&S NRP-Z4 : USB Adapter (passive)
R&S NRP-Z11 : Three-Path Diode Power Sensors
R&S NRP-Z21 : Three-Path Diode Power Sensors
R&S NRP-Z22 : Three-Path Diode Power Sensors
R&S NRP-Z23 : Three-Path Diode Power Sensors
R&S NRP-Z24 : Three-Path Diode Power Sensors
R&S NRP-Z31 : Three-Path Diode Power Sensors
R&S NRP-Z41 : Three-Path Diode Power Sensors
R&S NRP-Z61 : Three-Path Diode Power Sensors
R&S NRP-Z51 : Thermal Power Sensor
R&S NRP-Z55 : Thermal Power Sensor model .03
R&S NRP-Z55 : Thermal Power Sensor model .04
R&S NRP-Z56 : Thermal Power Sensor
R&S NRP-Z57 : Thermal Power Sensor
R&S NRP-Z58 : Thermal Power Sensor
R&S NRP-Z81 : Wideband Power Sensor
R&S NRP-Z85 : Wideband Power Sensor
R&S NRP-Z86 : Wideband Power Sensor
R&S NRP-Z86 model .44 : Wideband Power Sensor
R&S NRP-Z91 : Average Power Sensor
R&S NRP-Z92 : Average Power Sensor
