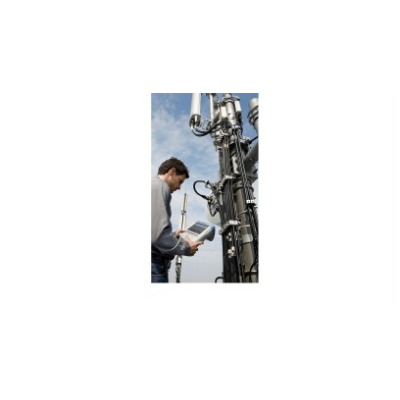

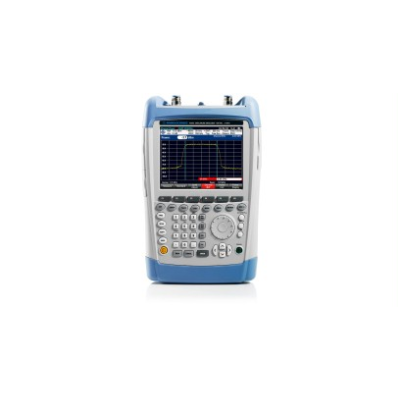

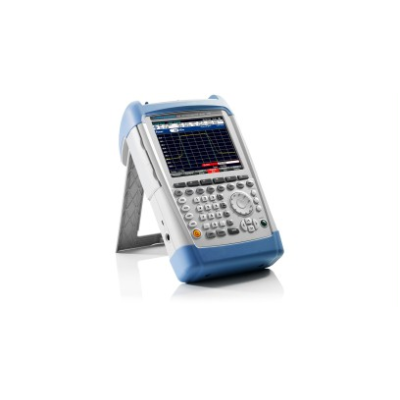

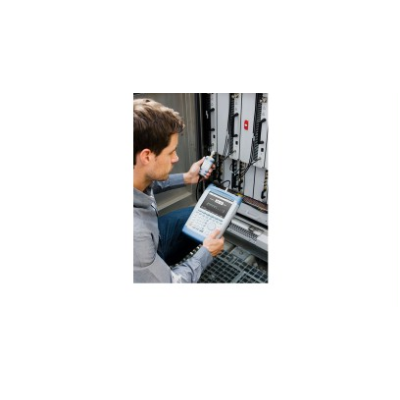

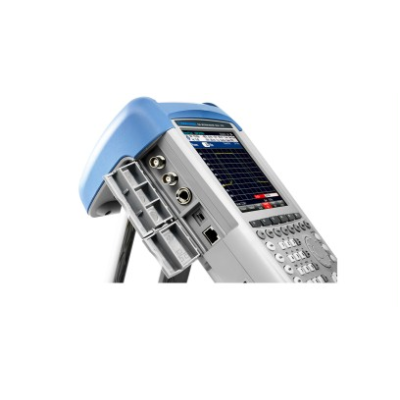

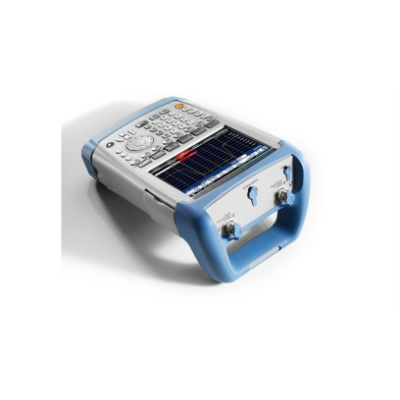

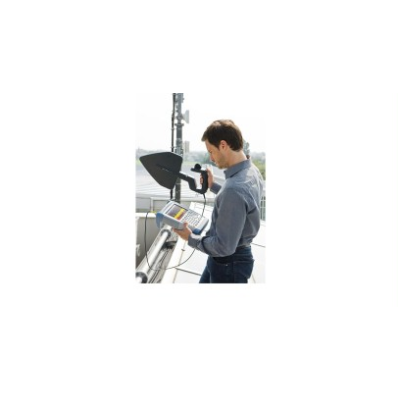

The R&S FSH spectrum analyzer is rugged, handy and designed for use in the field. Its low weight, its simple, well-conceived operation concept and the large number of measurement functions make it an indispensable tool for anyone who needs an efficient measuring instrument for outdoor work.The R&S FSH is a handheld spectrum analyzer and depending on the model and the options installed a power meter, a cable and antenna tester and a two-port vector network analyzer. It provides the three most important RF analysis functions that an RF service technician or an installation and maintenance team needs to solve daily routine measurement tasks. For example, it can be used for maintaining or installing transmitter systems, checking cables and antennas, assessing signal quality in broadcasting, radiocommunications and service, measuring electric field strength or in simple lab applications. The R&S FSH can perform any of these tasks quickly, reliably and with high measurement accuracy.

Frequency range from 9 kHz to 3.6/8/13.6/20 GHz
High sensitivity (< 141 dBm (1 Hz), with preamplifier < 161 dBm (1 Hz))
20 MHz demodulation Bandwidth for analyzing LTE signals
Low measurement uncertainty (< 1 dB)
Measurement functions for all important measurement tasks related to the startup and maintenance of transmitter systems
Internal tracking generator and VSWR bridge with built-in DC voltage supply (bias)
Two-port network analyzer
Rugged, splash-proof housing for rough work in the field
Easy handling due to low weight (3 kg with battery) and easy-to-reach function keys
Easy operation thanks to user configurable, automatic test sequences (wizard)

R&S FSH : Handheld Spectrum Analyzer
R&S FSH-B106 : Li-Ion Battery Pack
R&S FSH-K14 : Spectrogram measurement application
R&S FSH-K15 : Interference analysis measurement application (software license)
R&S FSH-K16 : Geotagging measurement application
R&S FSH-K17 : Indoor Mapping Measurement Application
R&S FSH-K29 : Pulse Measurements with Power Sensor

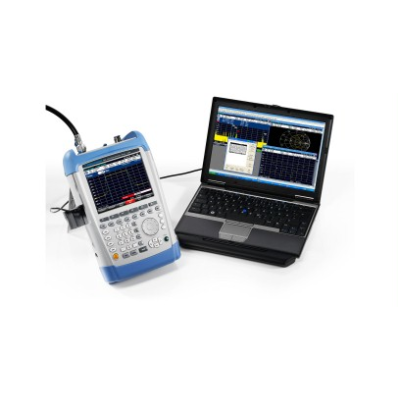

R&S FSH-K40 : Remote Control via LAN or USB
R&S FSH-K41 : Distance-to-Fault Measurement
R&S FSH-K42 : Two-port vector network analysis
R&S FSH-K10 : GSM, EDGE measurement application
R&S FSH-K44 : 3GPP WCDMA BTS/NodeB Application for Pilot Channel and EVM Measurements
R&S FSH-K44E : 3GPP WCDMA BTS/NodeB Application for Code Domain Power Measurements
R&S FSH-K45 : Vector Voltmeter
R&S FSH-K46 : CDMA2000 BTS Application for Pilot Channel and EVM Measurements
R&S FSH-K46E : CDMA2000 BTS Application for Code Domain Power Measurements
R&S FSH-K47 : 1xEV-DO BTS Application for Pilot Channel and EVM Measurements
R&S FSH-K47E : 1xEV-DO BTS PN-Scanner and Time-Domain-Power measurement application
R&S FSH-K48 : TD-SCDMA BTS Power and EVM Measurements
R&S FSH-K48E : TD-SCDMA/HSDPA BTS Power and EVM Measurements
R&S FSH-K50 : LTE FDD Downlink Application for Pilot Channel and EVM Measurements
R&S FSH-K50E : LTE FDD Downlink Application for Enhanced Channel and Modulation Measurements
R&S FSH-K51 : LTE TDD Downlink Application for Pilot Channel and EVM Measurements
R&S FSH-K51E : LTE TDD Downlink Application for Enhanced Channel and Modulation Measurements
R&S FSH-K43 : Receiver mode and channel scan measurement
R&S FSH-Z101 : USB Adapter Cable for R&S FSH-Z1/-Z18
R&S FSH-Z114 : Precision Frequency Reference
R&S FSH-Z144 : USB adapter cable
R&S FSH-Z320 : RF Cable (length 1 m), N male/N female
R&S FSH-Z321 : RF Cable (length 3 m), N male/N female
R&S FSH-Z28 : Combined Open/Short/50 ? Load Calibration Standard, for calibrating the VSWR and DTF measurement
R&S FSH-Z29 : Combined Open/Short/50 ? Load Calibration Standard, for calibrating the VSWR and DTF measurement
R&S RAZ : Matching Pad, 50 ?/75 ?
R&S RAM : Matching Pad, 50 ?/75?
R&S FSH-Z38 : Matching Pad, 50 ?/75 ?,

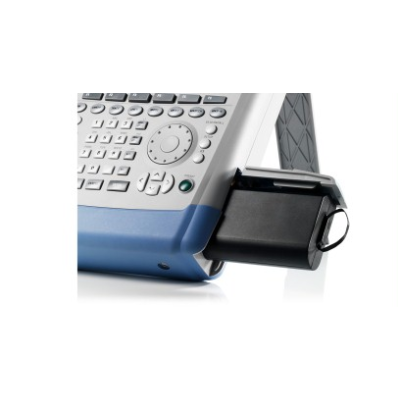

R&S HA-Z204 : Lithium-Ion Battery Pack, 4.5 Ah
R&S HA-Z206 : Lithium-Ion Battery Pack, 6.75 Ah
R&S HA-Z203 : Battery Charger for Lithium-Ion battery pack, 4.5 Ah/6.75 Ah
R&S HA-Z202 : Vehicle Adapter for Power Supply

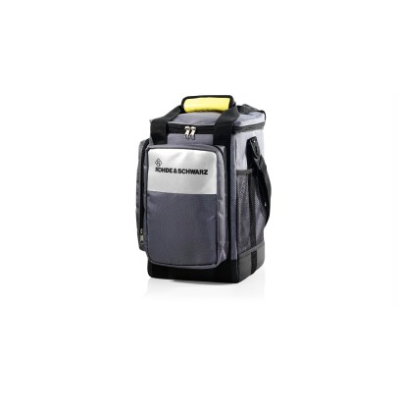

R&S HA-Z220 : Carrying Bag
R&S HA-Z221 : Hard Case
R&S HA-Z222 : Carrying Holster
R&S HA-Z223 : Shoulder Strap for Carrying Holster
R&S HA-Z240 : GPS Receiver
R&S FSH-Z36 : Headphones
R&S HE300 : Active Directional Antenna
R&S HE300HF : HF-Option to R&S HE300
R&S HL300 : Antenna
R&S TSEMF-B1 : Isotropic Antenna
R&S TSEMF-B2 : Isotropic Antenna
R&S TSEMF-B3 : Isotropic Antenna
R&S HZ-15 : Compact Probe Set for E and H Near-Field Measurements, 30 MHz to 3 GHz
R&S HZ-16 : Preamplifier 3 GHz, 20 dB, Power Adapter 100 V to 230 V, for R&S HZ-15
R&S HA-Z211 : Spare USB Cable
R&S HA-Z210 : Spare LAN Cable
R&S HA-Z201 : Spare AC Power Supply
R&S NRP-Z11 : Three-Path Diode Power Sensors
R&S NRP-Z211 : Two-Path Diode Power Sensors
R&S NRP-Z21 : Three-Path Diode Power Sensors
R&S NRP-Z221 : Two-Path Diode Power Sensors
R&S NRP-Z22 : Three-Path Diode Power Sensors
R&S NRP-Z23 : Three-Path Diode Power Sensors
R&S NRP-Z24 : Three-Path Diode Power Sensors
R&S NRP-Z31 : Three-Path Diode Power Sensors
R&S NRP-Z81 : Wideband Power Sensor
R&S NRP-Z55 : Thermal Power Sensor model .03
R&S NRP-Z56 : Thermal Power Sensor
R&S NRP-Z57 : Thermal Power Sensor
R&S NRP-Z91 : Average Power Sensor
R&S NRP-Z92 : Average Power Sensor
R&S NRP-Z4 : USB Adapter (passive)
R&S FSH-Z1 : Power Sensor
R&S FSH-Z14 : Directional Power Sensor
R&S FSH-Z18 : Power Sensor
R&S FSH-Z44 : Directional Power Sensor
