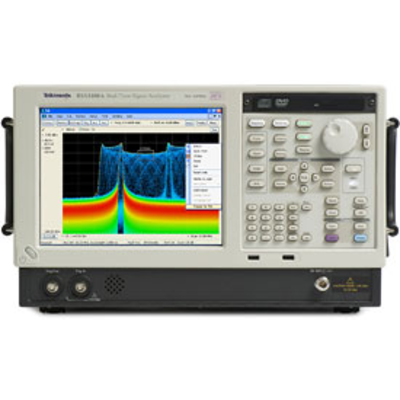

The RSA5000 Series mid-range spectrum analyzer combines the best-in-class RF performance with up to 165 MHz bandwidth and 4th Generation DPX_ Technology. This provides the measurement confidence and functionality you demand for everyday tasks and gives you the dynamic range you expect for challenging spectrum analysis measurements.

With an increased acquisition bandwidth of up to 165 MHz, the widest available among real-time and mid-range Spectrum Analyzers, the Tektronix RSA5100B Series will support high-margin, high accuracy WLAN 802.11ac characterization and troubleshooting, and demanding spectrum management, radar design and wideband communications applications.

Tektronix RSA5100B Series leads the industry with unique features that include density trigger, time-qualified triggers and innovative swept DPX display technology that makes it easier to find unwanted transmissions. These instruments also offer the industry's best integration of real-time and multiple domain analysis, with all interactions available through a single interface. Additionally, The minimum signal duration for 100% Probability of Intercept (POI) has improved 33% to a class-leading 2.8 µsec.

Applications

• RF Debug and design of components, modules and systems of all types
• Spectrum Management – reduce time to intercept and identify known and unknown signals
• Radio/Satellite Communications – Analyze complex behavior of new designs
• EMI Diagnostics – Increase confidence that designs will pass compliance testing
• Radar/EW – Complete analysis of pulsed, hopping signals of all types

The RSA5000 Series mid-range spectrum analyzer combines the best-in-class RF performance with up to 165 MHz bandwidth and 4th Generation DPX_ Technology. This provides the measurement confidence and functionality you demand for everyday tasks and gives you the dynamic range you expect for challenging spectrum analysis measurements.


• Frequency Range: 1 Hz to 3.0/6.2/15/26.5 GHz
• Real Time Bandwidth to 165 MHz (RSA5126B)
• Expanded support for 802.11 WLAN standards (optional) including the widest-bandwidth 802.11ac variant
• Outstanding Mid-Range Spectrum Analysis
• Reduce time-to-fault and increase confidence with real time processing
• Triggers zero in on the problem
• Capture the widest and deepest signals
• More standard analysis than you expect in an everyday tool
• Optional performance offers added value
