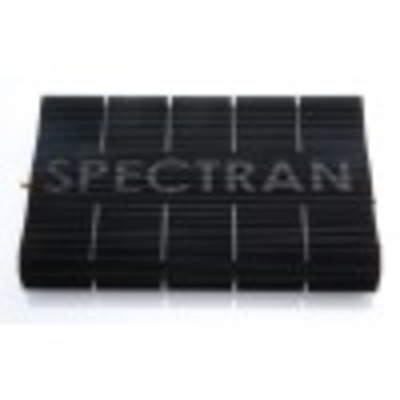

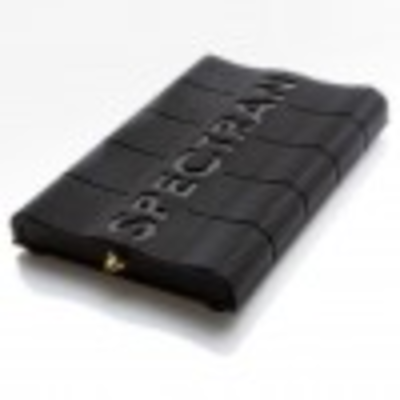

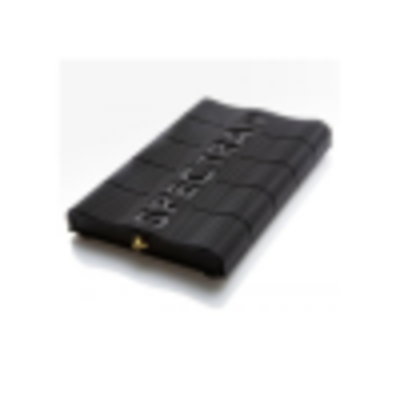

Aaronia Spectran HF-6080 V4 X
Product Details
-
Manufacturer: Aaronia
-
Model: HF-6080X
-
Description:

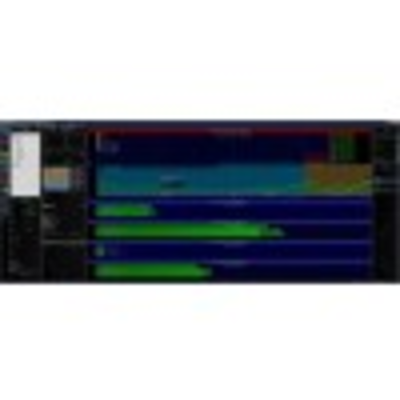

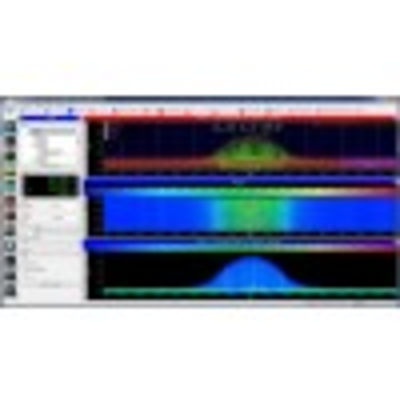

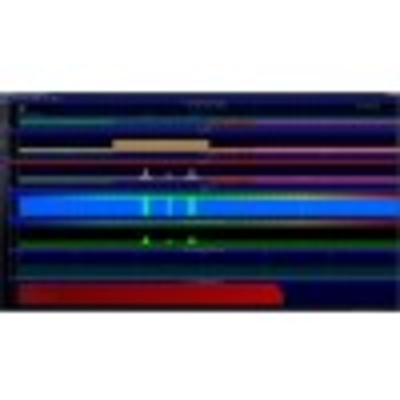

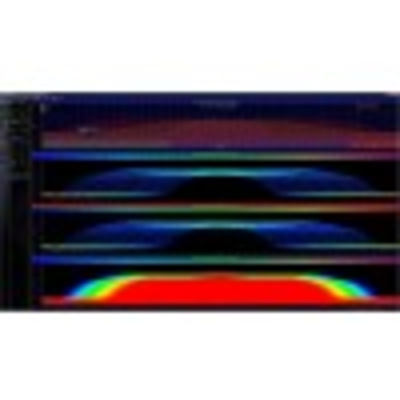

Same as HF-6060 V4 X but enhanced frequency range up to 8GHz and higher sensitivity down to -160dBm(Hz). Incl. USB controled real-time Analyzer-Software for MAC-OS, Linux, Windows.
Our 8GHz USB Spectrum Analyser at an incredible price.
Heavily extended frequency range of up to 8GHz. Extreme sensitivity.
Included in delivery:

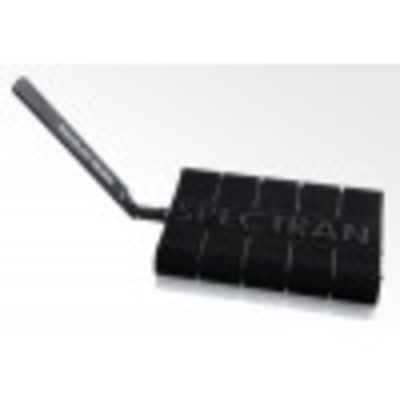

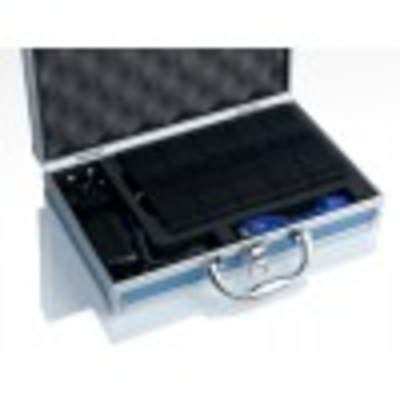

HF-6080 V4 X, OmniLOG 90200 antenna, aluminum carrycase, international power supply, USB-Cable, PC analyzer software and english manual.
Technical details Spectrum Analyzer Spectran HF-6080 V4 X

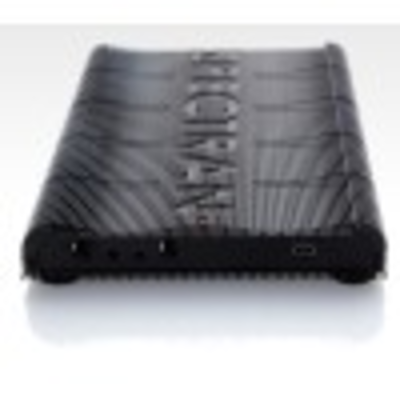

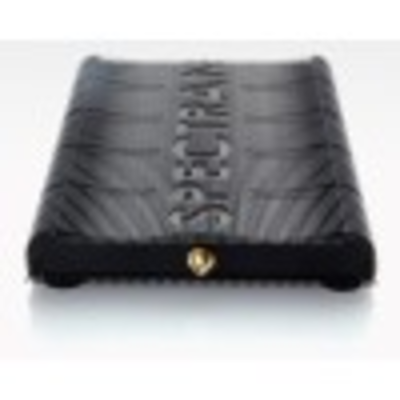

100% controlled by USB only (no display) 100% powered by the external power supply only (no battery) Included OmniLOG antenna 50 Ohms SMA input Internal speaker (which can be switched off) Audio out for the use of PC based FFT analyzer software Very thick (3mm) aluminium housing offering very good screening. 14Bit Dual-ADC DDC Hardware-Filter 150 MIPS DSP (CPU) Frequency range: 10MHz to 8GHz Max measurement range: -145dBm (1Hz) Max measurement range PreAmp: -160dBm (1Hz) Lowest possible SampleTime: 1mS Typ. accuracy: +/- 2 dBOption 020 (15dB preamplifier)
Option 204 (Realtime Peak POWER-METER)
Option 015 (Audio Signal Tracker)
