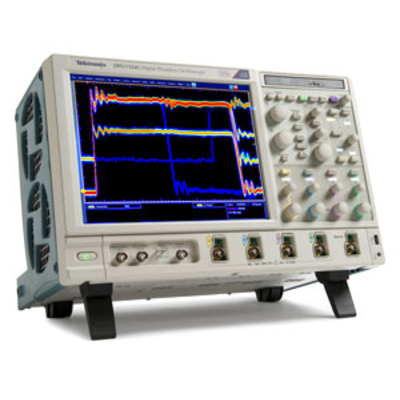

Tektronix DPO7054C Digital Phosphor Oscilloscope
Product Details
-
Manufacturer: Tektronix
-
Model: DPO7054C
-
Description:
Tektronix 500 MHz bandwidth, 4 channels oscilloscope.
Bandwidths up to 3.5 GHz and sampling rates up to 40 GS/s make the DPO7000C Series a natural choice for analyzing critical, high-speed signals. Over 30 analysis packages provide in-depth measurements for communications standards, jitter analysis, memory bus standards, vector analysis and many more. The Windows operating system lets you run your own analysis software right on the instruments. Fast waveform capture rate, advanced triggering, and protocol decode and search capabilities help solve frustrating troubleshooting mysteries, fast.
- 500 MHz Bandwidth
- Sample Rate: 20/10/5 GS/s (1/2/4 chs)
- FastAcq™ provides >250,000 wfm/s waveform capture rate
- Intensity-graded, color-graded digital phosphor display
- Pinpoint® triggers, including serial packet content
- 12.5 Mpoint standard record lengths
- Up to 250 Mpoint optional record lengths
- FastFrame™ segmented memory acquisitions
- Advanced Search and Mark: finds up to 8 specific events at a time
- MultiView Zoom™ for quick navigation
- 53 automated measurements
- Advanced math
- Included: Limit Test (LT), Visual Trigger and Search (VET), extended record length (2RL)
- Optional: Application-specific support, including: Serial bus debug, Serial bus compliance, Power analysis, Jitter analysis, RF analysis
Features |
Benefits |
| Bandwidths from 500 MHz to 3.5 GHz with user selectable bandwidth limit filters | Achieves more accurate characterization of designs by optimizing the oscilloscope performance individually by channel, based on the frequency content of the signal being measured. |
| Up to 40 GS/s sample rate | Accurately sample your signal, ensuring that all frequency content is being acquired and displayed. |
| FastAcq® with Digital Phosphor display | Quickly discover glitches and infrequent events with Tektronix proprietary FastAcq technology. A maximum capture rate of >250,000 waveforms/s shows elusive anomalies fast. |
| Pinpoint® triggering | Rapidly capture signal anomalies with over 1400 available trigger combinations, including setup/hold, serial packet, and pattern lock for serial data streams up to 1.25 Gb/s. Optional Visual Trigger enables graphical trigger definition. |
| Built-in Analysis Tools | Analyze your device with 53 automated measurements, measurement statistics, histograms, advanced waveform math, user-definable filters, and custom MATLAB and .NET math plug-ins. |
| Serial triggering and analysis options | Quickly debug common serial buses with automated trigger, decode and search – I2C, SPI, RS-232/422/485/UART, USB2.0, Ethernet, MIL-STD-1553B, CAN, LIN and FlexRay. |
| Application Software Packages | Transform your oscilloscope for specialized applications with jitter and eye analysis included standard and over 30 optional software packages for power analysis, serial compliance, RF analysis, memory and more. |
| Offline Waveform Analysis | Enables better time and resource utilization; view, measure, and analyze data captured in your lab, independent of scope hardware with TekScope AnywhereTM |
Opt. BRR Automated compliance and measurement solution for BroadR-Reach 1.2.
Opt. D-PHY MIPI® D-PHY Essentials – Transmitter Debug, Characterization, and Compliance Test Solution.
Opt. DDRA, LP-DDR4 Complete memory interface analysis package for DDR1/2/3/4, LPDDR1/2/3/4 and GDDR3/5. Option LP-DDR4 for LPDDR4 is available to use only on MSO/DPO70000 oscilloscopes.
Opt. DJA Simplifies identifying signal integrity concerns, jitter and their related sources and provides the highest sensitivity and accuracy available for real-time oscilloscopes.
Opt. ET3 Automated characterization, compliance and full PHY layer support for 10BASE-T, 100BASE-TX and 1000BASE-T.
Opt. HSIC Electrical signal quality test and protocol validation of HSIC host and device designs.
Opt. LSA Low-speed automotive serial analysis bundle, includes CAN trigger, CAN/LIN decode and analysis (includes TDSVNM).
Opt. MOST Electrical compliance and debug test solution for MOST50 and MOST150 host and device designs.
Opt. MTM Compliance verification and interoperability testing to communication and computing serial standards masks.
Opt. PWR Power measurement and analysis solution for characterization and testing of power devices and power supplies including power quality and harmonic testing.
Opt. SR-810B Quickly analyze 8b/10b serial buses with automatic decode and search on serial packet content.
Opt. SR-AERO MIL-STD-1553B protocol trigger and decode of serial packet content.
Opt. SR-AUTO CAN, LIN, and FlexRay protocol trigger and decode of serial packet content.
Opt. SR-COMP RS-232/422/485/UART protocol trigger and decode of serial packet content.
Opt. SR-DPHY MIPI® D-PHY automatic decode and search on serial packet content.
Opt. SR-EMBD I2C and SPI protocol trigger and decode of serial packet content.
Opt. SR-ENET 10BASE-T and 100BASE-TX protocol search and decode of serial packet content.
Opt. SR-PCIE PCI Express serial bus support with automatic trigger and decode on serial packet content.
Opt. SR-USB Automated compliance testing and verification of USB 2.0 and 3.0 for low-speed, full-speed, high speed and superspeed.
Opt. SVA SignalVu AM/FM/Direct Audio Measurements.
Opt. SVE SignalVu wideband spectral analysis and measurements.
Opt. SVM SignalVu General-purpose Modulation Analysis
Opt. SVO SignalVu Flexible OFDM Analysis.
Opt. SVP SignalVu Advanced Pulse Signal Analysis.
Opt. SVT SignalVu Settling Time Measurements – Frequency and Phase.
Opt. USB2 Perform "one touch" compliance testing with automated instrument and test mode control.
Opt. USBPWR Automated compliance testing for USB power adapters to USB2.0 Battery Charger Specification v1.1 and IEC 62684.
