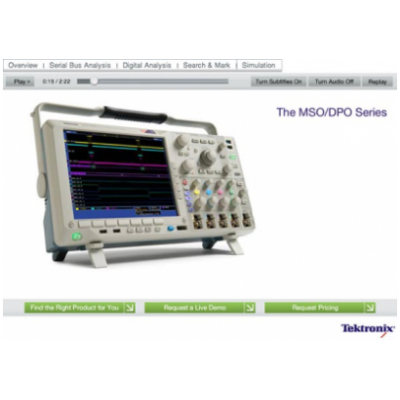

Tektronix MSO4104B-L (MSO/DPO4000B) Mixed Signal Oscilloscope
Product Details
-
Manufacturer: Tektronix
-
Model: MSO4104B-L
-
Description:
1 GHz Bandwidth, 5 GS/s Sample Rate Mixed Signal Oscilloscope.
Offering up to 1 GHz bandwidth and 5 GS/s sample rate, the MSO/DPO4000B Mixed Signal Oscilloscope Series delivers the performance you need to see fast-changing signal details. With as many as 20 channels, you can analyze analog and digital signals with a single instrument. Combine that with automated serial and parallel bus analysis, innovative Wave Inspector controls, and automated power measurements, and the MSO/DPO4000B Series provides the feature-rich tools you need to simplify and speed debug of your complex design.
Looking for the MSO4000B Series at 100 MHz, 350 MHz, 500 MHz or 1 GHz? You will find their replacements in the MDO4000B Series. These oscilloscopes have a built-in spectrum analyzer at no additional cost. Learn more about these products today.
Features |
Benefits |
| 2 or 4 analog and 16 digital channels | Analyze analog and digital signals on a single instrument for system-level troubleshooting of complex designs. |
| Digital phosphor display | Quickly discover glitches and infrequent events with a greater than 340,000 wfm/s waveform capture rate and intensity-graded display. |
| Complete set of triggers | Rapidly capture signal anomalies with over 125 available trigger combinations, including setup/hold, serial packet content and parallel data. |
| Wave Inspector® controls | Easily search, mark and navigate long record lengths to find all occurrences of your event. |
| Automated Measurements | Simplify analysis of your device with 42 automated measurements, FFT analysis, measurement statistics, waveform histograms, and advanced waveform math. |
| Parallel bus triggering and analysis (MSO Series) | Quickly debug your parallel bus with automated trigger, decode and search. Capture fast transitions with timing resolution up to 60.6 ps. |
| Serial triggering and analysis (optional) | Quickly debug common serial buses with automated trigger, decode and search – I2C, SPI, USB, Ethernet, CAN, LIN, FlexRay, RS-232/422/485/UART, I2S/LJ/RJ/TDM, and MIL-STD-1553. |
| Power analysis (optional) | Achieve fast, accurate results with integrated automated power measurements. |
| Low-capacitance passive voltage probing | Four probes with industry-best 4pF capacitive loading and up to 1 GHz bandwidth are included standard to ensure accurate measurements |
DPO4USB Application Module: USB Serial Triggering and Analysis (USB2.0 LS, HS, FS)
DPO4VID Application Module: HDTV and Custom Video TriggeringDPO4AERO Application Module: Aerospace Serial Triggering and Analysis (MIL-STD 1553)
DPO4AUDIO Application Module: Audio Serial Triggering and Analysis (I2S, LJ, RJ, TDM)
DPO4AUTO Application Module: Automotive Serial Triggering and Analysis (CAN, LIN)
DPO4AUTOMAX Application Module: Extended Automotive Serial Triggering and Analysis (CAN, LIN, FlexRay)
DPO4BND Application Module; Bundle module for MDO/MSO/DPO4000B and MDO4000 Series (Includes DPO4AERO, DPO4AUDIO,DPO4AUTO,DPO4COMP,DPO4EMBD,DPO4ENET,DPO4LMT,DPO4PWR,DPO4USB,DPO4VID)
DPO4COMP Application Module: Computer Serial Triggering and Analysis (RS-232/422/485/UART)
DPO4EMBD Application Module: Embedded Serial Triggering and Analysis (I2C, SPI)
DPO4ENET Application Module: Ethernet Serial Triggering and Analysis (10BASE-T, 100BASE-TX)
DPO4LMT Application Module: Limit and Mask Testing
DPO4PWR Application Module: Power Measurement and Analysis
