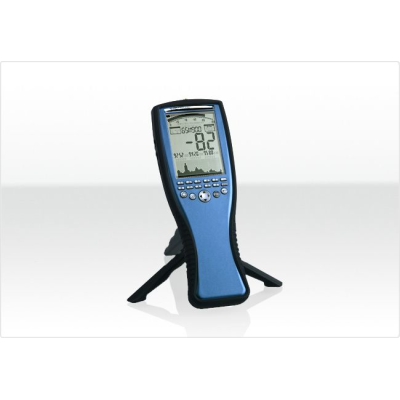

SPECTRAN HF-2025E V3

The low cost spectrum analyzer. Handy and cost-effective. Including directional antenna, charger, battery, free of cost Spectrum-Analyzer-Software and more.
The HF-2025E is included in our cheap Starter Bundle. With this bundle you can save € 50,-.

New Price Point for Spectrum Analyzer:
Aaronia offers a portable RF spectrum analyser range which represents a new price point for such products. The performance and price offered by the SPECTRAN series make it a highly valuable tool for engineers who have only rare requirements for a spectrum analyser. EMC evaluation testing and RF interference can be identified quickly.
As well as being lower cost, the SPECTRAN RF units are much smaller, lower power and lighter than other RF spectrum analysers currently available. The low power consumption offers up to 9 hours of continuous operation from a charge which truly is a new record on portable analyzers.
The SPECTRANs offer RF service engineers a highly portable and cost effective tool that enables to carry a spectrum analyser to areas that have usually been not cost effective when using existing "portable" products and difficult or even impossible to access with bench top instruments offered by other manufacturers. Our low cost and ultra portable spectrum analysers ensure that site survey and RF testing can be performed on any site visit.
The SPECTRAN V3 series weighs less than 420gr and measures only 250 x 86 x 27 mm. The low weight and small dimensions make it a true handheld instrument, unlike other "portable" spectrum analysers which can be up to ten times of the size and weight.

Patented technology:
Based on a patented spectrum analyzer method Aaronia can offer a professional RF measurement at a spectacular price level.
Detect sources of interference, find out more about their causes, determine the frequency and intensity of the signal sources, measure limits and boost the functionality by using our high-end PC software.

Made in Germany:
All SPECTRANs are developed, individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standard so that Aaronia can offer every customer a full 10 years warranty for all SPECTRAN spectrum analyzers and EMC antennas.

Real-time Spectrum analyzer software (included for FREE):
All SPECTRAN units offer a USB interface with real-time remote control to your PC or MAC. The free analyzer software, which is available for MAC OS, Linux and Windows, transforms any SPECTRAN into a powerful measurement solution with great features (e.g. recording, multiple window display, histogram, waterfall diagram, unlimited number of markers, enhanced limits display etc.). Please have a look at the latest version of our software at our software development website.

Limits display:
All SPECTRAN units offer a powerful limits display. Just push the limits button at our Spectrum Analyzer and the high-performance Digital Signal Processor (DSP) of the SPECTRAN constantly calculates the limits and displays the results in real-time. Spectrum analyzers with this high-end feature usually cost  thousands of Euro. Just save this costs by using Aaronia analyzers.

EMC antenna included:
The shipment of each SPECTRAN includes a free EMC directional antenna which covers a wide frequency range.

Options:
All SPECTRAN units can be equipped with various options which highly expand the functionality. More details about possible options for this SPECTRAN are available at above section "Options".

• Frequency range: 700MHz to 2,5GHz
• Amplitude: -80dBm to 0dBm (typ.)
• Lowest sample time: 100mS
• Resolution (RBW): 1MHz to 50MHz
• Units: dBm, dBµV, V/m, A/m, W/m²
• (dBµV/m, W/cm² etc. via PC software)
• Input: 50 Ohm SMA RF-input (f)
• Accuracy: +/- 4dB (typ.)
• Interface: USB 2.0/1.1
• Dimensions (L/W/D): 250x86x27 mm
• Weight: 410gr

Highlights:

• Exposure limit calculation and display according to DIN/VDE 0848
• RF spectrum display
• Simultaneously displays frequency and signal strength
• Real-time remote control via USB
• Large, high resolution multifunctional LCD
• AM demodulation
• DECT & TimeSlot analyzer
• Real-time Peak Power Detector (option)
• Hold function
• Included EMC directional antenna HyperLOG 7025
• Free MAC OS, Linux and Windows software

Option 201 (2,5GHz Broadband Peak Power Meter for HF-2025E)


This option expands your SPECTRAN with a Peak Power Meter with full 2,5GHz of bandwidth. Furthermore it allows exact measurement of signals with high crest factor like those of WLAN technology, and even extremely short signals, like Radar bursts. What's more, measurement is performed in real-time and broadband, while at the same time being temperature-compensated. It is also an perfect solution for measurement of cable attenuation or receiver output. Depending on the actual frequency, the Power Meter provides a sensitivity of up to approx. -50dBm, while the maximum usable level is +10dBm.
