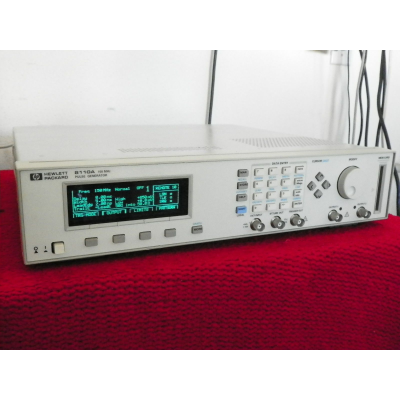

Precise edge-positioning, plus the ability to simulate digital signals as they occur in the real world, makes the Keysight 8110A pulse pattern generator stand out as an ideal partner for your Keysight oscilloscope or logic analyzer. On the bench you can verify designs so you can achieve reliable results quickly at frequencies where emulation becomes uncertain or cumbersome. In systems high resolution lets you optimize yield. True-to-life signals improve measurement credibility.

Each Keysight 8110A 150 MHz single- or dual-channel pulse pattern generator requires 1 or 2 output modules Keysight 81103A.

The Keysight 8110A Pulse pattern generator can be factory-configured with one or two channels and can include a PLL module and a deskew module. The second channel and the modules are retrofitable.

Flexible pulses or patterns for digital designs

Key Features

· 150 MHz Timing · 2 ns Variable Transitions

· 10 Vpp (20 Vpp) into 50 Ω · 10 ps Resolution

· 0.1% Frequency Accuracy

· 4 kbit Pattern per Channel

· 3 and 4 Level Signals

· 1 or 2 Output Channels

· SCPI Programming Commands

· Small Size

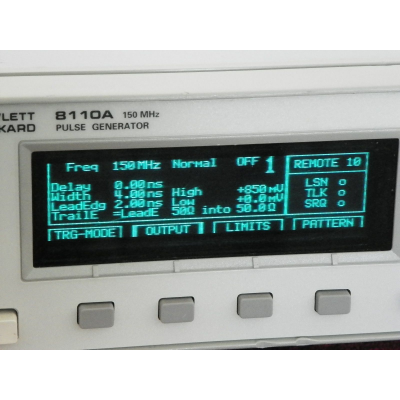

· Graphic Display
