Engineered for the broadest measurement capability

• 1 GHz bandwidth across all 4 analog channels
• 20 GSa/s max. sample rate
• Standard 20 Mpts per channel memory, upgradeable to 1 Gpts

Get three instruments in one

• Scope: The powerful features of our Infiniium Series oscilloscopes with InfiniiScan advanced triggering coupled with superior specifications give you precise signal representation
• Logic Analyzer: Add 16 integrated, deep-memory digital channels to see critical data values and timing relationships. Can be upgraded to MSO9104A
• Protocol analyzer: Choose integrated protocol viewers to quickly drill down into packets and time correlate between protocol and physical layers.

Widest range of debug and compliance software applications

• Serial protocol applications including I²C, SPI, RS-232, CAN, LIN, Flexray, JTAG and USB 2.0
• Serial physical layer applications including Ethernet
• Jitter analysis applications including EZJIT and EZJIT Plus
• MATLAB^® software available directly from Keysight for making your own custom measurement and analysis routines, user-defined filters, or instrument applications.

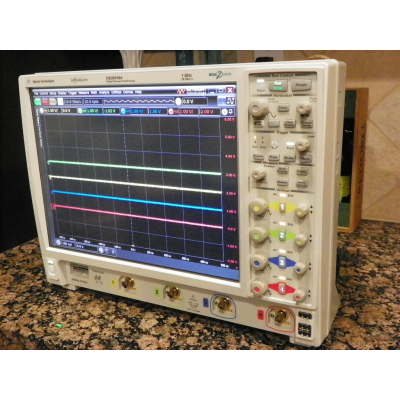

Keysight’s Infiniium DSO9104A, equipped with a 15” XGA display, comes in a package that is just 9” (23 cm) deep and weighs only 26 (11.8 kg) pounds to preserve your limited bench space. This scope is engineered to give you the broadest measurement capability available to meet your needs both today and in the future. Add 16 integrated digital channels with the MSO9104A.Take advantage of optional integrated protocol viewers to quickly isolate physical layer issues causing errors. Customize your toolset with our debug and compliance packages to tailor the scope to your needs.
