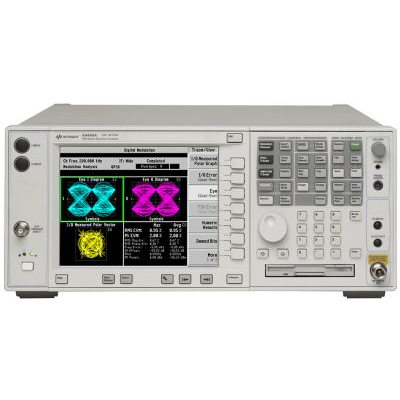

Hp/Agilent/Keysight E4443A PSA Spectrum Analyzer, 3 Hz to 6.7 GHz
Product Details
-
Manufacturer: Hp/Agilent/Keysight
-
Model: E4443A
-
Description:
E4443A PSA high-performance spectrum analyzer measures and monitors complex RF signals up to 6.7 GHz.
The E4443A PSA high-performance spectrum analyzer measures and monitors complex RF signals up to 6.7 GHz.
Migrate to the PXA
PXA combines the PSA’s technical excellence with state-of-the-art technologies
PXA has greater performance, capability, flexibility, and compatibility
Learn more about migrating from the PSA to the PXA
Performance
+/-0.19 dB absolute amplitude accuracy
-155 dBm (-168 dBm w/preamp) displayed average noise level (DANL)
-118 dBc/Hz phase noise at 10 kHz offset
81 dB W-CDMA ACLR dynamic range
Analysis bandwidth
10 MHz analysis bandwidth (Option B7J for the Basic mode)
Optional 40 or 80 MHz analysis bandwidth to capture and measure complex signals.
-78 dB (nominal) third order intermodulation for 40 or 80 MHz analysis bandwidth
Up to 300 MHz analysis bandwidth forcalibrated VSA measurements
Flexibility
Flexible platform with 16 optional, easy-to-use built-in measurement personalities and hardware options
PowerSuite one-button power measurements included as standard
MATLAB data analysis software for general purpose data analysis, visualization, and measurement automation.
