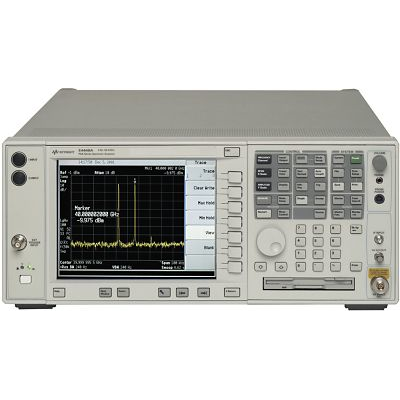

Hp/Agilent/Keysight E4448A PSA Spectrum Analyzer, 3 Hz to 50 GHz
Product Details
-
Manufacturer: Hp/Agilent/Keysight
-
Model: E4448A
-
Description:
E4448A PSA high-performance spectrum analyzer measures and monitors complex RF, microwave, and millimeter-wave signals up to 50 GHz
E4448A PSA high-performance spectrum analyzer measures and monitors complex RF, microwave, and millimeter-wave signals up to 50 GHz. With optional external mixing, the frequency coverage expands to 110 GHz withour external mixer, and to 325 GHz with other vendors’ mixers.
Migrate to the PXA
PXA combines the PSA’s technical excellence with state-of-the-art technologies
PXA has greater performance, capability, flexibility, and compatibility
Learn more about migrating from the PSA to the PXA
Performance
+/-0.19 dB absolute amplitude accuracy
-154 dBm displayed average noise level (DANL)
-118 dBc/Hz phase noise at 10 kHz offset
81 dB W-CDMA ACLR dynamic range
Analysis bandwidth
10 MHz analysis bandwidth (Option B7J for the Basic mode)
Optional 40 or 80 MHz analysis bandwidth to capture and measure complex signals.
-78 dB (nominal) third order intermodulation for 40 or 80 MHz analysis bandwidth
Up to 300 MHz analysis bandwidth forcalibrated VSA measurements
Flexibility
Flexible platform with 16 optional, easy-to-use built-in measurement personalities and hardware options
PowerSuite one-button power measurements included as standard
MATLAB data analysis software for general purpose data analysis, visualization, and measurement automation.
