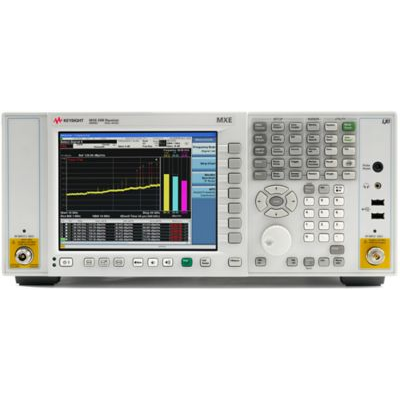

Hp/Agilent/Keysight N9038A MXE EMI Receiver, 20 Hz to 44 GHz
Product Details
-
Manufacturer: Hp/Agilent/Keysight
-
Model: N9038A
-
Description:
Option 503 enables frequency coverage up to 3.6 GHz.
Keep the test queue flowing
In EMC testing, success depends on tools that can help you do more in less timetoday and tomorrow. That’s why Keysight created the MXE: it’s a standards-compliant EMI receiver and diagnostic signal analyzer built on an upgradeable platform. In the lab and on the bench, it provides the accuracy, repeatability and reliability you need to test with confidence. Equip your team with the MXE, and keep the test queue flowing.
Functionality – See the latest enhancements
Frequency 20 Hz to 3.6, 8.4, 26.5 or 44 GHz
CISPR, MIL-STD 6 dB, and standard 3 dB resolution bandwidths
Quasi-peak, EMI-avg, RMS-avg anddiagnostic detectors
Extensive diagnostic capability
Performance
Meets CISPR 16-1-1: 2010 and MIL-STD-461F EMI receiver requirements
0.5 dB absolute amplitude accuracy
-166 dBm displayed average noise level (DANL) with preamplifier and noise floor extension
Phase noise -106 dBc/Hz 10 kHz offset
EMC measurements, diagnostics & calibration
EMC measurement functionality offeringsimultaneous detectors, signal lists, scan tables, limit lines, and correction factors
Both time domain and frequency domain scan capability
Enhanced diagnostics using spectrum analysis, Strip Chart, marker functions, span zoom, zoom span, and spectrograms
Accredited ISO 17025 calibration available to order
Automation & communication interface
LXI compliant, SCPI and IVI-COM
USB 2.0, 1000Base-T LAN, GPIB
Common X-Series user interface / Open Windows7 operating system
- Migrate your existing MXE from Windows XP to Windows 7
