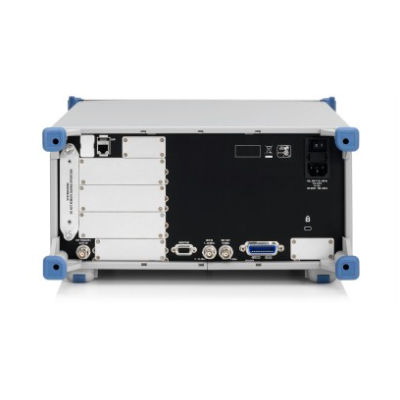

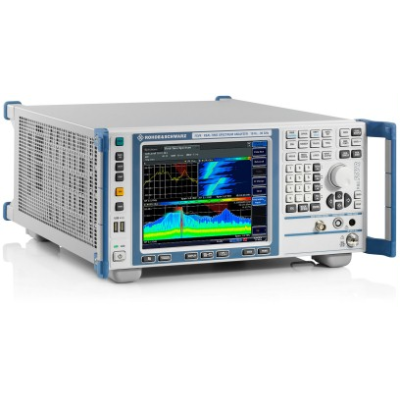

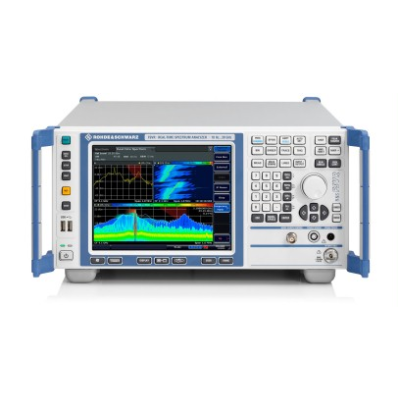

ROHDE & SCHWARZ FSVR7 R&S FSVR Real-Time Spectrum Analyzer
Product Details
-
Manufacturer: ROHDE & SCHWARZ
-
Model: FSVR7
-
Description:
Real-Time Spectrum Analyzer, 10 Hz to 7 GHz
The R&S FSVR combines a full-featured signal and spectrum analyzer with a real-time spectrum analyzer. In real-time operation, the R&S FSVR seamlessly measures and displays the spectrum in the time domain with a span of up to 40 MHz. As a result, it captures every event for analysis, no matter how brief that event might be.
Frequency range from 10 Hz to 7 GHz, 13.6 GHz, 30 GHz or 40 GHz

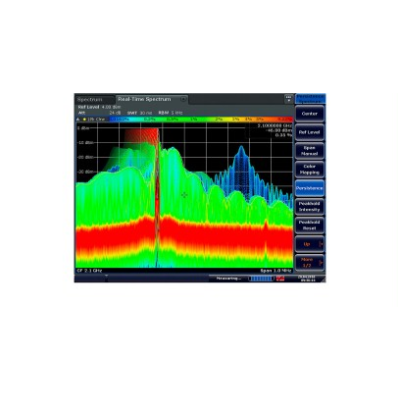

40 MHz real-time analysis Bandwidth for:Spectrum with persistence function

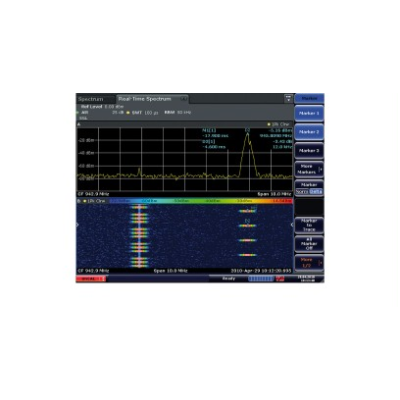

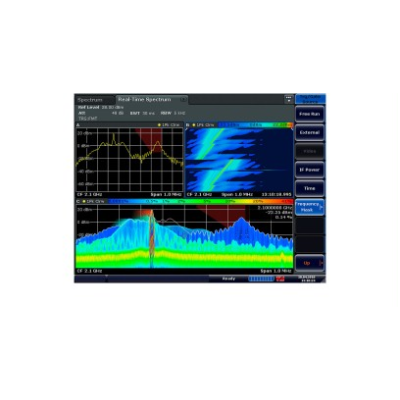

Spectrogram display
Display of power versus time
Triggering on Frequency masks
Measurement applications for cellular standards, wireless connectivity standards and general purpose, e.g. phase noise, noise figure, vector signal analysis, etc.
Frequency range up to 110 GHz with the R&S FSVR30 or R&S FSVR40, the R&S FSV-B21 option and the R&S FS-Z60/-Z75/-Z90/-Z110 harmonics mixers
R&S FSVR : Real-Time Spectrum Analyzer
R&S FSV-B3 : AM/FM Audio Demodulator
R&S FSV-B4 : OCXO, Precision Reference Frequency
R&S FSV-B4 : OCXO, Precision Reference Frequency Stability
R&S FSV-B5 : Additional Interfaces (IF/video output, AUX port, trigger output, two additional USB ports)
R&S FSV-B17 : Digital Baseband Interface
R&S FSVR-B18 : Solid-State Drive (removable hard drive)
R&S FSVR-B19 : Spare Hard Drive (removable hard drive)
R&S FSV-B21 : LO/IF Ports for External Mixers
R&S FSV-B22 : Preamplifier, 9 kHz to 4 GHz/7 GHz
R&S FSV-B24 : Preamplifier, 9 kHz to 13.6 GHz
R&S FSV-B24 : Preamplifier, 9 kHz to 30 GHz
R&S FSV-B24 : Preamplifier, 9 kHz to 40 GHz
R&S FSV-B25 : Electronic Attenuator (1 dB steps)
R&S FS-Z60/-Z75/-Z90/-Z110 : Harmonic Mixers
R&S RT-ZA9 : N(m) Adapter for R&S RT-Zxx oscilloscope probes
R&S FSV-K7S : FM Stereo Measurements (for R&S FSV-K7)
R&S FSV-K8 : Bluetooth /EDR Measurement Application
R&S FSV-K9 : Power Sensor Support (power measurement with the R&S NRPZxx power sensors)
R&S FSV-K10 : GSM/EDGE/EDGE Evolution Analysis
R&S FSV-K30 : Noise Figure and Gain Measurements
R&S FSV-K40 : Phase Noise Measurements
R&S FSV-K54 : EMI Measurement Application
R&S FSV-K70 : Vector Signal Analysis
R&S FSV-K72 : 3GPP BS (DL) Analysis, incl. HSDPA and HSDPA+
R&S FSV-K73 : 3GPP UE (UL) Analysis, incl. HSUPA
R&S FSV-K76 : TD-SCDMA BS Measurements
R&S FSV-K77 : TD-SCDMA UE Measurements
R&S FSV-K82 : CDMA2000 BS (DL) Analysis
R&S FSV-K83 : CDMA2000 MS (UL) Measurements
R&S FSV-K84 : 1xEV-DO BS (DL) Analysis
R&S FSV-K85 : 1xEV-DO MS (UL) Measurements
R&S FSV-K91 : WLAN IEEE 802.11a/b/g/j Analysis
R&S FSV-K91n : WLAN IEEE 802.11n Analysis
R&S FSV-K93 : WiMAX IEEE 802.16e OFDM/OFDMA Analysis
R&S FSV-K100 : EUTRA/LTE BS Analysis
R&S FSV-K101 : EUTRA/LTE UE Analysis
R&S FSV-K102 : EUTRA/LTE Downlink MIMO Analysis
R&S FSV-K104 : EUTRA/LTE TDD Downlink Analysis
R&S FSV-K105 : EUTRA/LTE TDD Uplink Analysis
R&S FS-K96 : OFDM Vector Signal Analysis Software
R&S FS?K96PC : OFDM Vector Signal Analysis Software
R&S FS-K130PC : Distortion Analysis Software
R&S ES-SCAN : EMI Software
