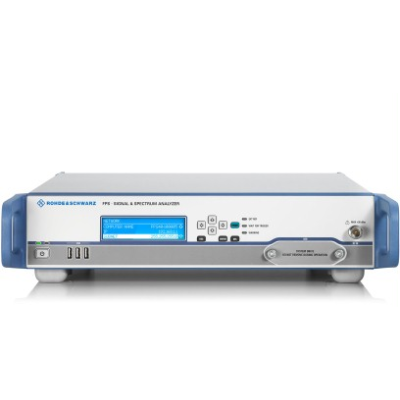

ROHDE & SCHWARZ FPS7 R&S FPS Signal and Spectrum Analyzer
Product Details
-
Manufacturer: ROHDE & SCHWARZ
-
Model: FPS7
-
Description:
Signal and Spectrum Analyzer, 10 Hz to 7 GHz
The R&S FPS is an exceptionally fast and compact signal and spectrum analyzer for performance oriented users. In production and in monitoring systems, only 2 HU of rack space are required a reduction of 50 % compared with traditional instruments.
Frequency range up to 4/7/13.6/30/40 GHz
Up to 160 MHz signal analysis Bandwidth
0.4 dB level measurement uncertainty up to 7 GHz
Measurement applications for GSM/EDGE (including EDGE Evolution), WCDMA/HSPA+, LTE, WLAN, vector signal analysis
110 dBc (1 Hz) phase noise at 10 kHz Frequency offset
+15 dBm third-order intercept (TOI)

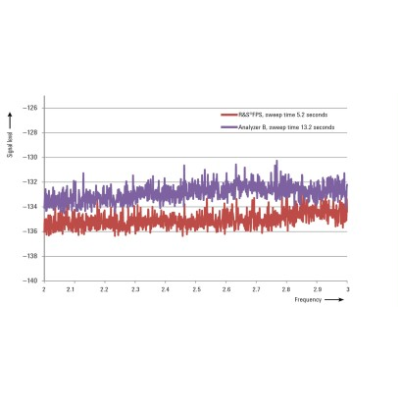

155 dBm displayed average noise level (DANL) at 1 GHz in 1 Hz Bandwidth
Removable hard disk for applications where security is a concern
R&S FPS : Signal and Spectrum Analyzer

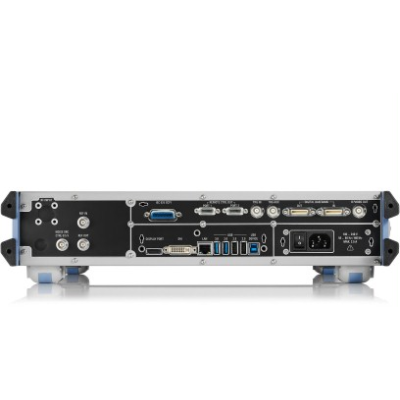

R&S FPS-B0 : Rear Panel RF Input
R&S FPS-B4 : OCXO, Precision Refernce Frequency
R&S FPS-B10 : External Generator Control
R&S FPS-B11 : YIG Filter Bypass, for R&S FPS 30
R&S FPS-B11 : YIG Filter Bypass, for R&S FPS 40
R&S FPS-B18 : Spare Solid State Disk (SSD, removable hard disk)
R&S FPS-B22 : Preamplifier, 9 kHz to 4 GHz/7 GHz
R&S FPS-B24 : RF Preamplifier, 9 kHz to 13.6 GHz
R&S FPS-B24 : RF Preamplifier, 9 kHz to 30 GHz
R&S FPS-B24 : RF Preamplifier, 9 kHz to 40 GHz
R&S FPS-B25 : Electronic Attenduator, 1dB steps
R&S FPS-B28V : Noise Source Control
R&S FPS-B40 : 40 MHz Anaysis Bandwidth
R&S FPS-B160 : 160 MHz Analysis Bandwidth, for R&S FPS4 and R&S FPS7
R&S FPS-B160 : 160 MHz Analysis Bandwidth, for R&S FPS13
R&S FPS-B160 : 160 MHz Analysis Bandwidth, for R&S FPS30 und R&S FPS40
R&S FPS-B478 : Rack Mount, preinstalled
R&S FPS-K7 : Analog Modulation Analysis (AM/FM/?M)
R&S FPS-K10 : Analysis of GSM, EDGE and EDGE Evolution Signals
R&S FPS-K30 : Noise Figure and Gain Measurements
R&S FPS-K33 : Security Write Protection
R&S FPS-K40 : Phase Noise Measurements
R&S FPS-K70 : Vector Signal Analysis
R&S FPS-K72 : Analysis of 3GPP FDD Base Station Signals incl. HSPA+
R&S FPS-K73 : Analysis of 3GPP FDD UE incl. HSPA+
R&S FPS-K76 : TD-SCDMA BS Measurements
R&S FPS-K77 : TD-SCDMA UE Measurements
R&S FPS-K82 : CDMA2000 BS Measurements
R&S FPS-K83 : CDMA2000 MS Measurements
R&S FPS-K84 : 1xEV-DO BS Measurements
R&S FPS-K85 : 1xEV-DO MS Measurements
R&S FPS-K91 : Analysis of WLAN IEEE 802.11a/b/g/j Signals
R&S FPS-K91n : Extension of R&S FPS-K91 to IEEE802.11n
R&S FPS-K91p : Extension of R&S FPS-K91 to IEEE802.11p
R&S FPS-K91ac : Extension of R&S FPS-K91 to IEEE802.11ac
R&S FPS-K100 : Analysis of EUTRA/LTE FDD Downlink Signals
R&S FPS-K101 : Analysis of EUTRA/LTE FDD Uplink Signals
R&S FPS-K102 : EUTRA/LTE Downlink MIMO Measurements
R&S FPS-K103 : EUTRA/LTE-Advanced Uplink Measurements
R&S FPS-K104 : Analysis of EUTRA/LTE TDD Downlink Signals
R&S FPS-K105 : Analysis of EUTRA/LTE TDD Uplink Signals
