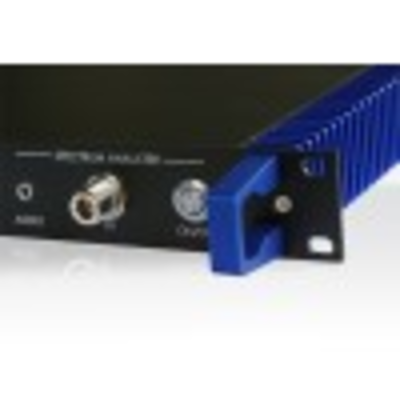

Aaronia Spectran HF RSA 6000
Product Details
-
Manufacturer: Aaronia
-
Model: HF-6000
-
Description:
Our remote controlled EMF Monitor for the professional user up to 6GHz incl. real-time remote analyzer software for MAC-OS, Linux, Windows.
Remote controlled EMF Monitor and Spectrum Analyzer for the professional user up to 6GHz. Best RF screening incl. real-time remote analyzer software for MAC-OS, Linux, Windows.

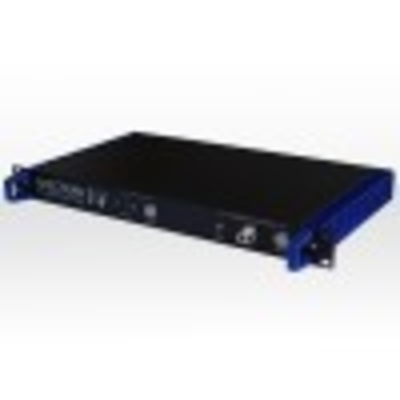

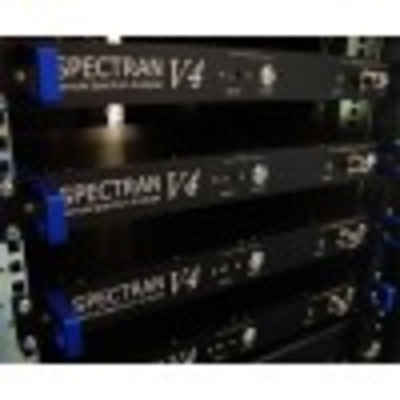

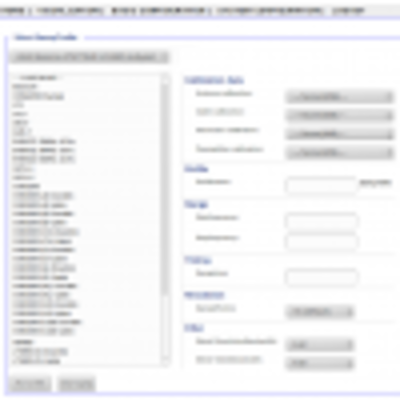

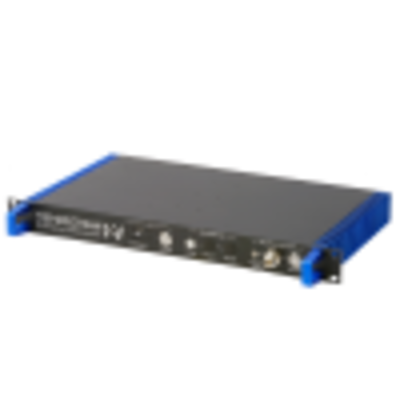

The 19 inch Spectrum Analyzer can be used in any standard 19 rack. The RSA series offer the possibility to control the analyzer via LAN / WLAN or USB. These interfaces allow complete integration into an existing network. The Spectrum Analyzer can either be remotely controlled via MCS software or via the integraded web-interface (by using the optional web-interface software EMF-Monitor). The system is based on a Linux operating system and can be expanded or customized manually (VPN, GSM dial-up, etc.).

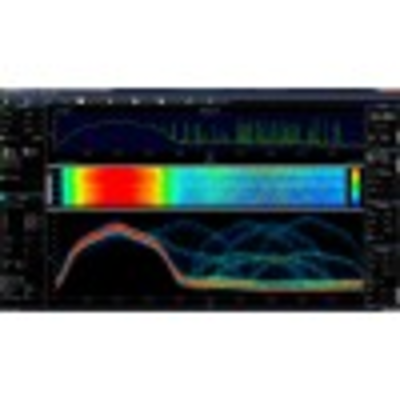

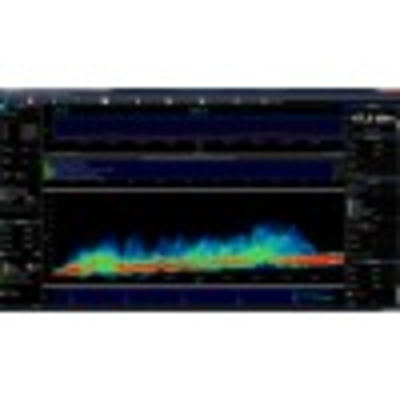

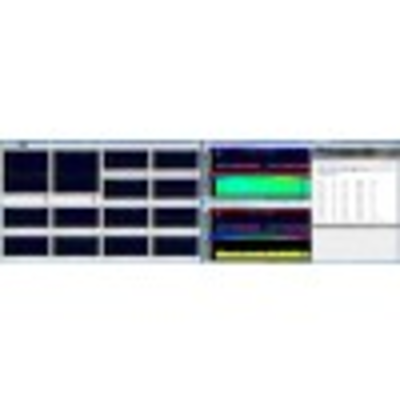

Gapless Spectrum Streaming with optional web-interface (Software EMF-Monitor) Optional Software EMF-Monitor allows access to unlimited RSA Analyzers from one centralized location Remote controllable in realtime (LAN/WLAN or USB) Eliminates trips to difficult locations Integrated Celeron or i5 PC and huge internal storage for continous data logging 19 standard module with one height unit only (1U) Frequency range: 10MHz to 6GHz DANL: -135dBm(1Hz) DANL with Preamp: -150dBm(1Hz) Max. power at RF input: +10dBm Lowest sample time: 10mS Resolution (RBW): 3kHz to 50MHz Units: dBm, dBV, V/m, A/m, W/m_ dBV/m, W/cm_ etc. Detectors: RMS, Min/Max Demodulator: AM, FM Input: 50 Ohm N, RF-input (f) Accuracy: +/- 2dB (typ.) 14Bit Dual-ADC DDC Hardware-Filter 150 MIPS DSP (CPU) Vector (I/Q) measurement Free MAC OS, Linux and Windows software Real-time Peak Power Detector (option) Interface: USB 2.0/1.1/LAN Dimensions (L/W/D): 19 inch rack mount Weight: 3450gr Warranty: 10 years (internal PC 2 years)
Integrated PC:

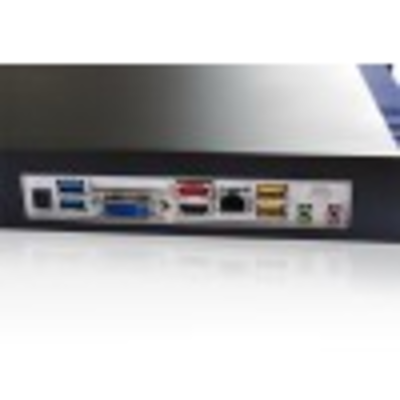

CPU: Intel Celeron G530 2,4GHz RAM: 2×2GB SO-DiMM DDR3, 1066MHz HDD: 320GB (5400rpm) External Ports: 2x USB 2.0, 2x USB 3.0, 1x Audio, 1x 10/100/1000 Mb/s Ethernet, 1x DVI-I (Analog,Digital), 1x HDMI, 1x eSATA Power supply: 19,5V (7,9A max.) Operatingsystem: LinuxSoftware \EMF-Monitor\
Option 020 (15dB preamplifier)
40dB EMC preamplifier (10MHz – 6GHz)
Option 203 (Realtime Peak POWER-METER)
Highend i5 EMF-Monitor
Zus?tzliche K?hlrippe
