Regulatory requirements are growing. You’re under increasing pressure to cut costs. And improving system uptime is always a top priority. The MS2712E Spectrum Master helps you do all of this and more. Whether you are performing complex interference analysis or assessing signal quality, the MS2712E Spectrum Master delivers the ease of use, rich functionality, and best-in-class price/performance you’ve come to expect from Anritsu.Designed to handle the most punishing field conditions, the MS2712E allows you to monitor, locate, identify, and analyze a broad range of cellular, 2G/3G/4G, land mobile radio, Wi-Fi, and broadcast signals. With a rich array of configuration options, the multifunctional MS2712E eliminates the need for you to learn and carry multiple instruments when locating and identifying signals over wide frequency ranges.
Spectrum Master Highlights

Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I, Spectral Emission Mask
Interference Analyzer: Spectrogram, Signal Strength, RSSI, Signal ID, Interference Mapping
3GPP Signal Analyzers GSM/EDGE, W-CDMA/HSPA+, TD-SCDMA/HSPA+, LTE/LTE-A, TD-LTE/LTE-A
3GPP2 Signal Analyzers cdmaONE/CDMA2000 1X, CDMA2000 1xEV-DO
IEEE 802.16 Signal Analyzers Fixed WiMAX, Mobile WiMAX
Digital TV ISDB-T, DVB-T/H Signal Analyzer
20 MHz demodulation bandwidth
Dynamic Range: > 102 dB in 1 Hz RBW
DANL: -162 dBm in 1 Hz RBW
Phase Noise: -100 dBc/Hz max @ 10 kHz offset at 1 GHz
Frequency Accuracy: < 50 ppb with GPS On

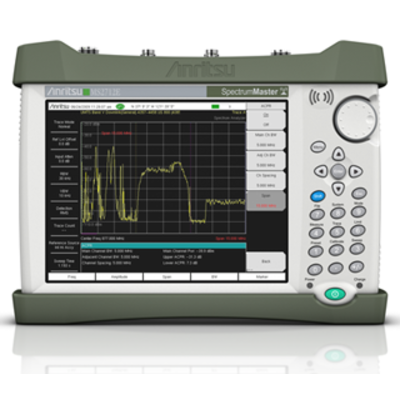

Compact Handheld Spectrum Analyzer

Spectrum Analyzer: 9 kHz – 4 GHz
Interference Analyzer with Interference Mapping
High Accuracy Power Meter, 2-port Transmission Measurements
Coverage Mapping, Channel Scanner, GPS, AM/FM/PM Analyzer
3GPP, 3GPP2, WiMAX, signal analyzers
Tracking Generator: 500 kHz – 4 GHz
Digital TV ISDB-T, DVB-T/H analyzers
Field-proven design: Three-hour battery life, rugged, compact, lightweight, daylight viewable display
Intuitive menu-driven touchscreen user interface
Standard three-year warranty (battery one-year warranty)

MS2712E-0010 : Bias Tee
MS2712E-0009 : 20 MHz BW Demod
MS2712E-0031 : GPS Built-in Receiver (Requires Antenna, sold separately)
MS2712E-0019 : High Accuracy Power Meter (Requires USB Power Sensor)
MS2712E-0029 : Power Meter
MS2712E-0025 : Interference Analyzer (Option 31 recommended)
MS2712E-0027 : Channel Scanner
MS2712E-0431 : Coverage Mapping (requires Option 31)
MS2712E-0444 : EMF Measurement System
MS2712E-0090 : Gated Sweep
MS2712E-0020 : Tracking Generator
MS2712E-0509 : AM/FM/PM Analyzer with Coverage Mapping (Options 31 and 431 are required for utilization of coverage mapping feature)
MS2712E-0509 : AM/FM/PM Analyzer with Coverage Mapping (Options 31 and 431 are required for utilization of coverage mapping feature)
MS2712E-0040 : GSM/EDGE RF Measurements (Requires Option 9. Cannot be ordered with Option 880)
MS2712E-0041 : GSM/EDGE Demodulation (Requires Option 9. Cannot be ordered with Option 880)
MS2712E-0880 : GSM/GPRS/EDGE Measurements (Requires Option 9. Combines functionality of Options 40 and 41. Cannot be ordered with Option 40 or 41)
MS2712E-0880 : GSM/GPRS/EDGE Measurements (Requires Option 9. Combines functionality of Options 40 and 41. Cannot be ordered with Option 40 or 41)
MS2712E-0044 : W-CDMA/HSPA+ RF Measurements (Requires Option 9. Cannot be ordered with Option 881)
MS2712E-0065 : W-CDMA/HSPA+ Demodulation (Requires Option 9. Cannot be ordered with Option 881)
MS2712E-0035 : W-CDMA/HSPA+ OTA Measurements (Requires Option 9. Option 31 recommended. Cannot be ordered with Option 881)
MS2712E-0881 : W-CDMA/HSPA+ Measurements (Requires Option 9. Option 31 recommended. Combines functionality of Options 44, 65, and 35. Cannot be ordered with Option 44, 65, or 35)
MS2712E-0881 : W-CDMA/HSPA+ Measurements (Requires Option 9. Option 31 recommended. Combines functionality of Options 44, 65, and 35. Cannot be ordered with Option 44, 65, or 35)
MS2712E-0060 : TD-SCDMA/HSPA+ Measurements (Requires Option 9. Cannot be ordered with Option 882)
MS2712E-0061 : TD-SCDMA/HSPA+ Demodulation (Requires Option 9. Cannot be ordered with Option 882)
MS2712E-0038 : TD-SCDMA/HSPA+ OTA Measurements (Requires Option 9. Requires Option 31 for full functionality. Cannot be ordered with Option 882)
MS2712E-0882 : TD-SCDMA/HSPA+ Measurements (Requires Option 9. Requires Option 31 for full functionality. Combines functionality of Options 60, 61, and 38. Cannot be ordered with Option 60, 61, or 38)
MS2712E-0882 : TD-SCDMA/HSPA+ Measurements (Requires Option 9. Requires Option 31 for full functionality. Combines functionality of Options 60, 61, and 38. Cannot be ordered with Option 60, 61, or 38)
MS2712E-0541 : LTE/LTE-A RF Measurements (Requires Option 9. Cannot be ordered with Option 883)
MS2712E-0542 : LTE/LTE-A Modulation Measurements (Requires Option 9. Cannot be ordered with Option 883)
MS2712E-0546 : LTE/LTE-A OTA Measurements (Requires Option 9. Requires Option 31 for full functionality. Cannot be ordered with Option 883)
MS2712E-0551 : TD-LTE/LTE-A RF Measurements (Requires Option 9. Cannot be ordered with Option 883)
MS2712E-0552 : TD-LTE/LTE-A Modulation Measurements (Requires Option 9. Cannot be ordered with Option 883)
MS2712E-0556 : TD-LTE/LTE-A OTA Measurements (requires Option 9. Requires Option 31 for full functionality. Cannot be ordered with Option 883)
MS2712E-0883 : LTE/LTE-A FDD/TDD Measurements (Requires Option 9. Requires Option 31 for full functionality. Combines functionality of Options 541, 542, 546, 551, 552, and 556. Cannot be ordered with Option 541, 542, 546, 551, 552, or 556)
MS2712E-0883 : LTE/LTE-A FDD/TDD Measurements (Requires Option 9. Requires Option 31 for full functionality. Combines functionality of Options 541, 542, 546, 551, 552, and 556. Cannot be ordered with Option 541, 542, 546, 551, 552, or 556)
MS2712E-0042 : CDMA RF Measurements (requires Option 9. Cannot be ordered with Option 884)
MS2712E-0043 : CDMA Demodulation (requires Option 9. Cannot be ordered with Option 884)
MS2712E-0033 : CDMA OTA Measurements (requires Option 9. Requires Option 31. Cannot be ordered with Option 884)
MS2712E-0062 : EV-DO RF Measurements (requires Option 9. Cannot be ordered with Option 884)
MS2712E-0063 : EV-DO Demodulation (requires Option 9. Cannot be ordered with Option 884)
MS2712E-0034 : EV-DO OTA Measurements (requires Option 9. Requires Option 31. Cannot be ordered with Option 884)
MS2712E-0884 : CDMA/EV-DO Measurements (Requires Option 9. Requires Option 31 for full functionality. Combines functionality of Options 42, 43, 33, 62, 63, and 34. Cannot be ordered with Option 42, 43, 33, 62, 63, or 34)
MS2712E-0884 : CDMA/EV-DO Measurements (Requires Option 9. Requires Option 31 for full functionality. Combines functionality of Options 42, 43, 33, 62, 63, and 34. Cannot be ordered with Option 42, 43, 33, 62, 63, or 34)
MS2712E-0046 : Fixed WiMAX RF Measurements (requires Option 9. Cannot be ordered with Option 885)
MS2712E-0047 : Fixed WiMAX Demodulation (requires Option 9. Cannot be ordered with Option 885)
MS2712E-0066 : Mobile WiMAX RF Measurements (requires Option 9. Cannot be ordered with Option 885)
MS2712E-0067 : Mobile WiMAX Demodulation (requires Option 9. Cannot be ordered with Option 885)
MS2712E-0037 : Mobile WiMAX OTA Measurements (requires Option 9. Requires Option 31 for full functionality. Cannot be ordered with Option 885)
MS2712E-0885 : WiMAX Fixed/Mobile Measurements (Requires Option 9. Requires Option 31 for full functionality. Combines functionality of Options 46, 47, 66, 67, and 37. Cannot be ordered with Option 46, 47, 66, 67, or 37)
MS2712E-0885 : WiMAX Fixed/Mobile Measurements (Requires Option 9. Requires Option 31 for full functionality. Combines functionality of Options 46, 47, 66, 67, and 37. Cannot be ordered with Option 46, 47, 66, 67, or 37)
MS2712E-0030 : ISDB-T Digital Video Measurements (Requires Option 9)
MS2712E-0032 : ISDB-T SFN Measurements (Requires Option 9)
MS2712E-0079 : ISDB-T BER Measurements (Requires Option 30, cannot be ordered with Option 411)
MS2712E-0079 : ISDB-T BER Measurements (Requires Option 30, cannot be ordered with Option 411)
MS2712E-0064 : DVB-T/H Digital Video Measurements (Requires Option 9)
MS2712E-0078 : DVB-T/H SFN Measurements (Requires Option 9)
MS2712E-0057 : DVB-T/H BER Measurements (Requires Option 64, cannot be ordered with Option 411)
MS2712E-0057 : DVB-T/H BER Measurements (Requires Option 64, cannot be ordered with Option 411)
MS2712E-0411 : Ethernet Connectivity (Cannot be ordered with Options 79 or 57)
MS2712E-0098 : Standard Calibration to Z540
MS2712E-0099 : Premium Calibration to Z540 plus test data
