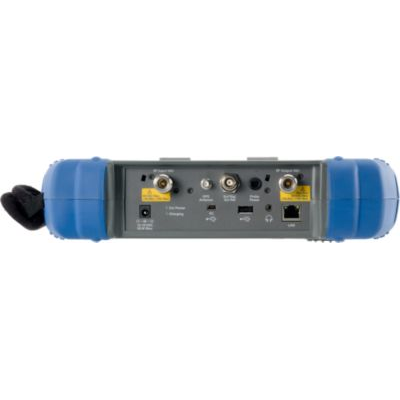

Hp/Agilent/Keysight N9344C Handheld Spectrum Analyzer (HSA), 20 GHz
Product Details
-
Manufacturer: Hp/Agilent/Keysight
-
Model: N9344C
-
Description:
N9344C HSA, 20 GHz handheld spectrum analyzer (HSA), is a rugged and weather-resistant tool that delivers best-in-class measurement performance, field test automation and rich measurement features.
N9342C/N9343C/N9344C brochure
If you are making measurements in the field, the Keysight N9344C handheld spectrum analyzer (HSA) makes your job easier. MIL PRF 28800 Class 2 compliant, it has the features you need for operating in tough field environments and its measurement performance gives you confidence the jobs been done right. The N9344C HSA lets you automate routine tasks to save time and ensure consistent results. Field testing just got easier with the Keysight N9344C HSA.
Get field-ready features – rugged and fanless design, clear viewing both day and night
Gain confidence in your measurements with benchtop performance in a handheld instrument
Reduce test setup time by 95% using the innovative task planner option
The following accessories are included with every N9344C HSA: AC/DC adapter, battery, USB cable, quick start tutorial and help kit CD. In addition, Keysight Technologies offers a standard 3-year warranty on all RF and microwave HSA analyzers.
Spectrum analyzer
9 kHz to 20 GHz
144 dBm displayed average noise level (DANL)
1.3 dB amplitude accuracy
< 0.95 s sweep time for 20 GHz full span
Tracking generator (TG)
5 MHz to 7 GHz
Output level: 20 to 0 dBm, 1 dB step
Built-in GPS receiver and GPS antenna
Measurements
Channel scanner measures up to 20 channels simultaneously
Spectrum monitor with spectrogram display, record, and playback
Peak and average power measurement with Keysight U2020 X-Series and U2000 series USB power sensors
AM/FM/ASK/FSK modulation analysis and time-gated spectrum analysis
HSA instrument attributes
Standard 3-year warranty
Battery life: 3.5 hours
Weight: 3.2 kg or 7 lbs
Operating temperature: 10 to +50 C (14 to 131 F)
