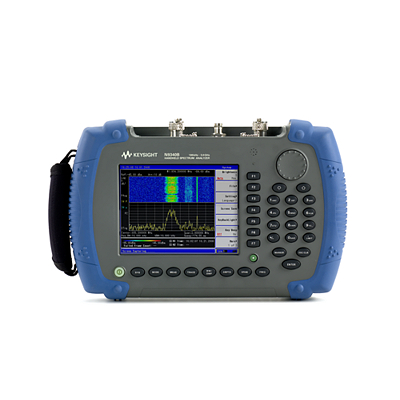

Hp/Agilent/Keysight N9340B Handheld RF Spectrum Analyzer (HSA), 3 GHz
Product Details
-
Manufacturer: Hp/Agilent/Keysight
-
Model: N9340B
-
Description:
The 3 GHz handheld spectrum analyzer provides powerful features for field applications, superior performance to build the confidence in field test and exceptional usability to enhance field productivity.
The N9340B handheld spectrum analyzer (HSA) puts the speed and performance of spectrum analysis in the hands of your field engineers. It provides powerful features for field applications. Plus, the HSAs superior performance gives you confidence in field test results while the optimized user interface enhances field productivity.
Creates reliable, accurate, and detailed picture of your communication system
Provides superior sensitivity
Tailors to application-specific test needs with powerful optional features
The following accessories are included with every N9340B HSA: Soft carrying case, AC/DC adapter, battery, USB cable, quick start tutorial and help kit CD. In addition, Keysight Technologies offers a standard 3-year warranty on all RF and microwave HSA analyzers.
Spectrum analyzer
9 kHz to 3 GHz
-144 dBm displayed average noise level (DANL)
1.5 dB amplitude accuracy
< 0.1 s sweep time for 3 GHz full span
Tracking generator (TG)
5 MHz to 3 GHz
TG output level: -25 to 0 dBm, 1 dB step
Measurements
High-accuracy power measurement with Keysight U2000 Series USB power sensors
Spectrum monitor with spectrogram display, record and playback
AM/FM and ASK/FSK modulation analysis
AM/FM IBOC spectrum analysis and xDSL interference analysis
HSA Instrument Attributes
Standard 3-year warranty
Battery life: 4 hours
Weight: 3.2 kg or 7 lbs
Operating temperature: -10 to +50 C (14 to 131 F)
