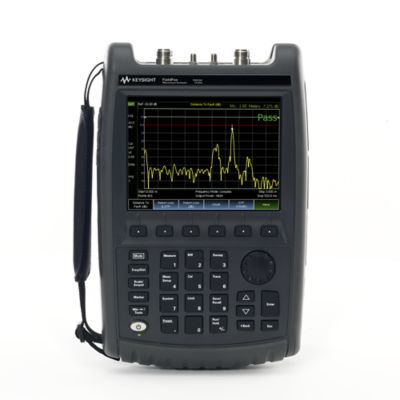

Hp/Agilent/Keysight N9916A FieldFox Handheld Microwave Combination Analyzer, 14 GHz
Product Details
-
Manufacturer: Hp/Agilent/Keysight
-
Model: N9916A
-
Description:
N9916A is a portable battery-operated analyzer; base function is a cable and antenna analyzer; configurations also include spectrum and network analyzers; optional built-in power meter and vector voltmeter.
View FieldFox Firmware, Software, and Product Support
View FieldFox Combination Analyzers, Technical Overview
View FieldFox Comparison Summary
FieldFox is equipped to handle routine maintenance, in-depth troubleshooting and anything in between. FieldFox delivers Keysight-quality measurements wherever you need to go. Add FieldFox to your kit, and carry precision with you.
The microwave combination analyzer’s base function is a cable and antenna analyzer. It can be configured with the following optional capabilities: spectrum analyzer, network analyzer, power meter, vector voltmeter, interference analyzer, variable DC source, built-in GPS receiver and remote control using an iPad or iPhone.
The following accessories are included with every FieldFox: AC/DC adapter, battery, soft carrying case, LAN cable, Quick Reference Guide and Users Guide.
Applications
Satellite communications, microwave backhaul
Military communications, radar systems
Active and passive device test
Accuracy
Get precise measurements that agree with benchtop results
CalReady, QuickCal, and ECal provide accurate return loss, distance-to-fault and S-parameters
InstAlign Unprecedented absolute amplitude accuracy across the full band, no warm-up required
Rugged
Dust-free design with no fans and no vents extends instrument reliability in harsh environments
Weather resistant withstands salty, humid environments
MIL-PRF-28800F Class 2 compliant
MIL-STD-810G, Method 511.5 Procedure I requirements for operation in explosive environments (type tested)
Cable and antenna analyzer (CAT), vector network analyzer (VNA)
30 kHz to14 GHz
CAT: Distance-to-fault, return loss, cable loss
VNA dynamic range: 100 dB to 9 GHz, 94 dB to 14 GHz
VNA: S11, S21, S22, S12, magnitude and phase
Spectrum analyzer
5 kHz to14 GHz
0.5 dB amplitude accuracy, full band, over full temperature range of -10 to +55 C (14 to 131 F)
Spur-free dynamic range: 105 dB
Full-band tracking generator
Independent source, vector voltmeter (VVM), power and pulse measurements
RF source: 30 kHz to14 GHz, CW, CW coupled, and tracking
VVM: 30 kHz to14 GHz, compare phase and electrical length
Average power, peak power, and pulse characterization with USB power sensors
Built-in power meter: 5 kHz to14 GHz
FieldFox instrument attributes
Remote control via iPad or iPhone
Standard 3-year warranty
Battery life: 3.5-hours weight: 3.0 kg or 6.6 lbs
Operating temperature: -10 to +55 C (14 to 131 F)
