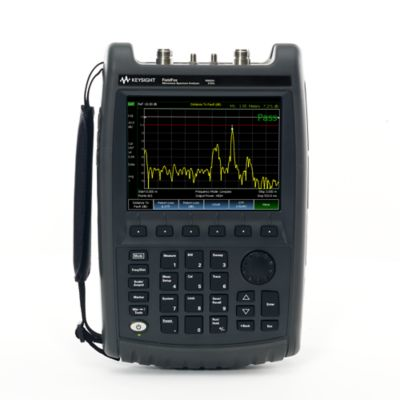

Hp/Agilent/Keysight N9935A FieldFox Handheld Microwave Spectrum Analyzer, 9 GHz
Product Details
-
Manufacturer: Hp/Agilent/Keysight
-
Model: N9935A
-
Description:
N9935A is a portable battery-operated microwave spectrum analyzer; configurations also include full band tracking generator and preamplifier, interference analyzer, time gating, VSWR and reflection measurements, and built-in power meter.
View FieldFox Firmware, Software, and Product Support
View FieldFox Microwave Spectrum Analyzers, Technical Overview
View FieldFox Comparison Summary
FieldFox is equipped to handle routine maintenance, in-depth troubleshooting and anything in between. FieldFox delivers Keysight-quality measurements wherever you need to go. Add FieldFox to your kit, and carry precision with you.
The spectrum analyzers base function is spectrum analysis, and can be configured to include full-band tracking generator and preamplifier, interference analyzer, VSWR and reflection measurements, built-in power meter, USB power sensor support, GPS receiver, DC bias voltage source, time gating and remote control capability.
The following accessories are included with every FieldFox: AC/DC adapter, battery, soft carrying case, LAN cable, Quick Reference Guide and Users Guide.
Applications
Satellite communications, microwave backhaul
Military communications, radar systems
Active and passive device test
Accuracy
Get precisemeasurements that agree with benchtop results
InstAlign Unprecedented absolute amplitude accuracy across the full band, no warm-up required
Rugged
Dust-free design with no fans, no vents extends instrument reliability in harsh environments
Water-resistant withstands salty, humid environments
Compliant with MIL-PRF-28800F Class 2
Compliant with MIL-STD-810G, Method 511.5, Procedure 1, operation in explosive environments
Spectrum analyzer
5kHz to9 GHz
0.5 dB amplitude accuracy, full band, over full temperature range of -10 to +55 C (14 to 131 F)
Spur-free dynamic range 105 dB
Tracking generator
30 kHz to9 GHz
VSWR and reflection measurements
Power and pulsemeasurements
Channel power, occupied bandwidth and adjacent channel power ratio
Average power, peak power, and pulse characterization with USB power sensors
Built-in power meter: 5 kHz to9 GHz
FieldFox instrument attributes
Remote control via iPad or iPhone
Standard 3-year warranty
Battery life: 3.5 hours weight: 3.0 kg or 6.6 lbs
Operating temperature: -10 to +55 C (14 to 131 F)
