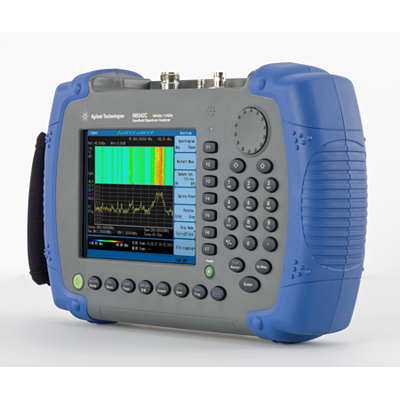

Hp/Agilent/Keysight N9342C Handheld Spectrum Analyzer (HSA), 7 GHz
Product Details
-
Manufacturer: Hp/Agilent/Keysight
-
Model: N9342C
-
Description:
N9342C HSA, 7 GHz handheld spectrum analyzer (HSA), is a rugged and weather-resistant tool that delivers best-in-class measurement performance, field test automation and rich measurement features.
N9342C/N9343C/N9344C brochure
If you are making measurements in the field, the Keysight N9342C handheld spectrum analyzer (HSA) makes your job easier. MIL PRF 28800 Class 2 compliant, it has the features you need for operating in tough field environments and its measurement performance gives you confidence the jobs been done right. The N9342C HSA lets you automate routine tasks to save time and ensure consistent results. Field testing just got easier with the Keysight N9342C HSA.
Get field-ready features – rugged and fanless design, clear viewing both day and night
Gain confidence in your measurements with benchtop performance in a handheld instrument
Reduce test setup time by 95% using the innovative task planner option
The following accessories are included with every N9342C HSA: AC/DC adapter, battery, USB cable, quick start tutorial and help kit CD. In addition, Keysight Technologies offers a standard 3-year warranty on all RF and microwave HSA analyzers.
Spectrum analyzer
9 kHz to 7 GHz
152 dBm displayed average noise level (DANL)
1.5 dB amplitude accuracy
< 0.4 s sweep time for 7 GHz full span
Tracking generator (TG), cable and antenna tester (CAT)
5 MHz to 7 GHz
TG output level: 20 to 0 dBm, 1 dB step
Built-in GPS receiver and GPS antenna
CAT: Distance-to-fault (DTF), return loss, cable loss
Measurements
Channel scanner and spectrum monitor for site survey and interference analysis
High-accuracy peak and average power measurement with Keysight U2000 Series and U2020 X-Series USB power sensors
AM/FM/ASK/FSK modulation analysis and time-gated spectrum analysis
Baseband input offers improved performance between 3 kHz and 12 MHz and enables xDSL and AM/FM IBOC measurements
HSA instrument attributes
Standard 3-year warranty
Battery life: 4 hours
Weight: 3.2 kg or 7 lbs
Operating temperature: 10 to +50 C (14 to 131 F)
