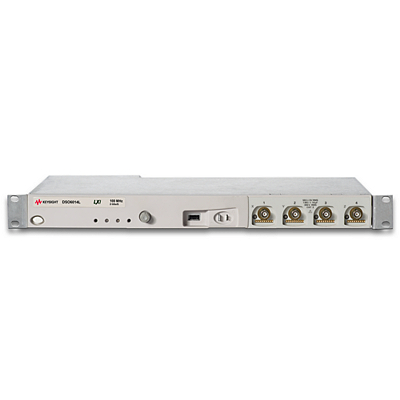

Hp/Agilent/Keysight DSO6054L Low Profile Oscilloscope: 500 MHz, 4 channels

Product Details

  • Manufacturer: Hp/Agilent/Keysight

  • Model: DSO6054L

  • Description:

    6054L Series digital storage scopes (DSOs) offer four channels of measurements in a compact, rack-mountable 1U-high form factor, optimized for automated and manufacturing test LXI compliant

No Current Sellers for Hp/Agilent/Keysight DSO6054L

Sign Up/Login to get notified when someone has one for sale.

The Keysight 6054L Series digital storage oscilloscopes (DSOs) offer four channels of measurements in a compact, rack-mountable 1U-high form factor, giving engineers a space-efficient way to integrate oscilloscopes into their test systems. The units remote capabilities and graphical Web interface reduce setup and troubleshooting time for engineers building design-verification and functional-test systems.

See detailed information and specifications on rack mounting

500-MHz Bandwidth – 4 scope channels (upgradeable to MSO with 16 digital channels)

LXIcompliant

Optimized for automated and manufacturing test

Rack-mountable 1U (43.66 mm) high form factor

Lowest cost ATE focused scope on the market

Connectivity

Standard full-scale connectivity: LAN, USB, GPIB and XGA video

Built-in Web browser control

Software drivers for most common programming environment

MATLAB software available directly from Keysight for making your own custom measurement and analysis routines, user-defined filters, or instrument applications. MATLAB software for Keysight oscilloscopes

Powerful Signal Acquisition

Up to 2 GSa/s sample rate, 2 Mpts stand memory

8 bit vertical resolution (extensible to 12 bits with high-resolution mode)

16 logic timing channels, time correlated MSO upgrade option

Easy System Integration

Standard rack mount hardware

100% software compatible with 6000A Series portable oscilloscopes

Optional secure environment mode for high level of data security

IVI-com drivers included standard
